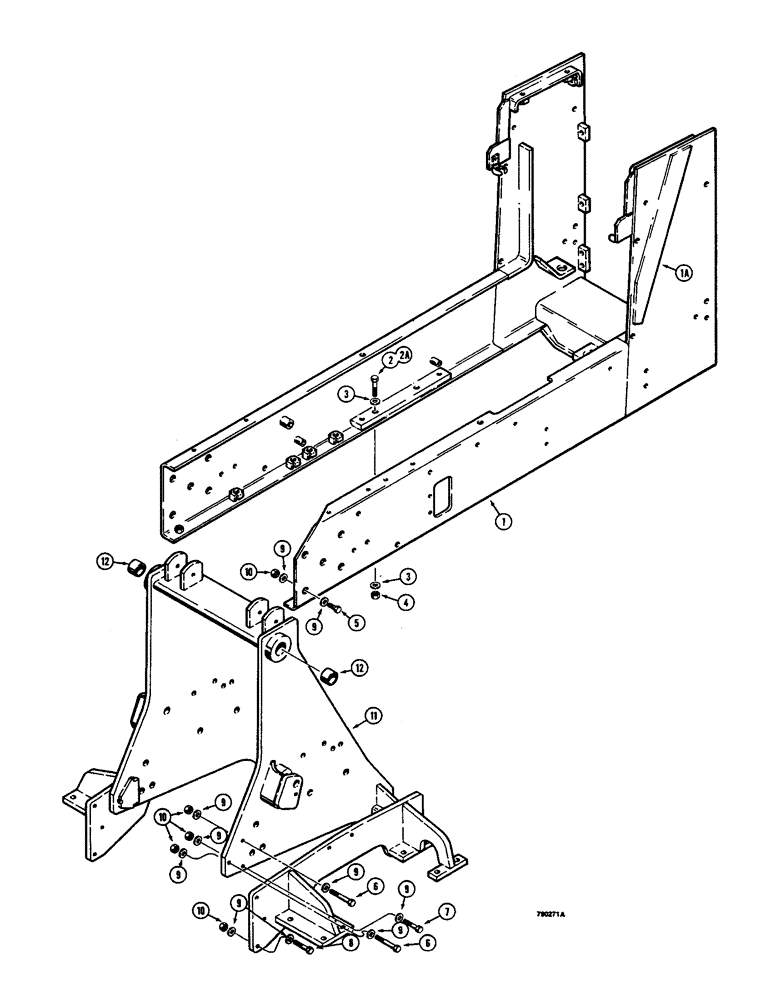

Запчасти Case 350B (282) - ENGINE FRAME AND MAIN FRAME, LOADER MODELS (05) - UPPERSTRUCTURE CHASSIS

1

R41625

FRAME - engine, Includes: Ref. 1A

1шт.

1a

R41611

PLATE - rub, weld on

2шт.

2

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, if used

4шт.

2a

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", grade 8, if used

4шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

8шт.

4

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC

4шт.

5

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8

4шт.

6

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex head, 3/4" - 20 NC x 3-1/4", grade 8

4шт.

7

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex head, 3/4" - 10 NC x 2-3/4", grade 8

2шт.

8

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

6шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

32шт.

10

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

16шт.

11

R41509

FRAME - main, Includes: Ref. 12

1шт.

12

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- main frame

2шт.
