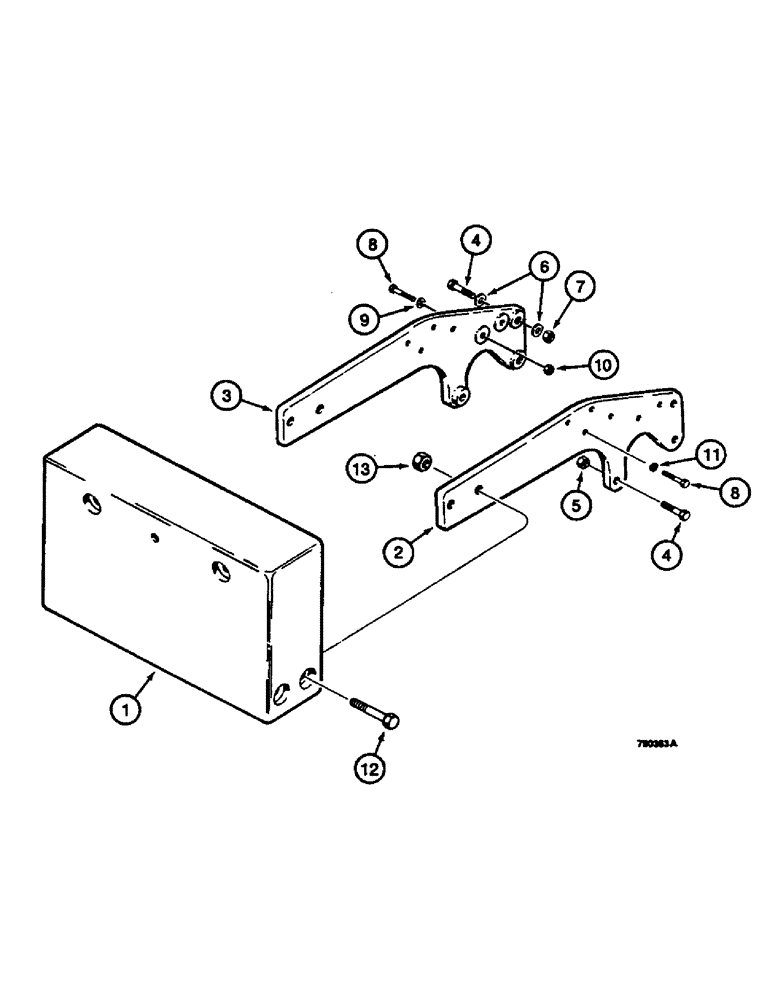

Запчасти Case 350B (278) - REAR COUNTERWEIGHT, LOADER MODELS WITH PTO (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 pound (635 kg)

1шт.

2

D33842

ARM - right-hand, counterweight support

1шт.

3

D33843

ARM - left-hand, counterweight support

1шт.

4

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex head, 3/4" - 10 NC x 2-3/4"

6шт.

5

25-1012

NUT,3/4"-10, G5

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

8шт.

7

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

8

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex head, 1/2" - 13 NC, 2-1/4", grade 8

10шт.

9

R24718

WASHER

- flat, 1/2", hardened

4шт.

10

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

11

92-8

LOCK WASHER,1/2"

6шт.

12

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

13

131-659

NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC

4шт.
