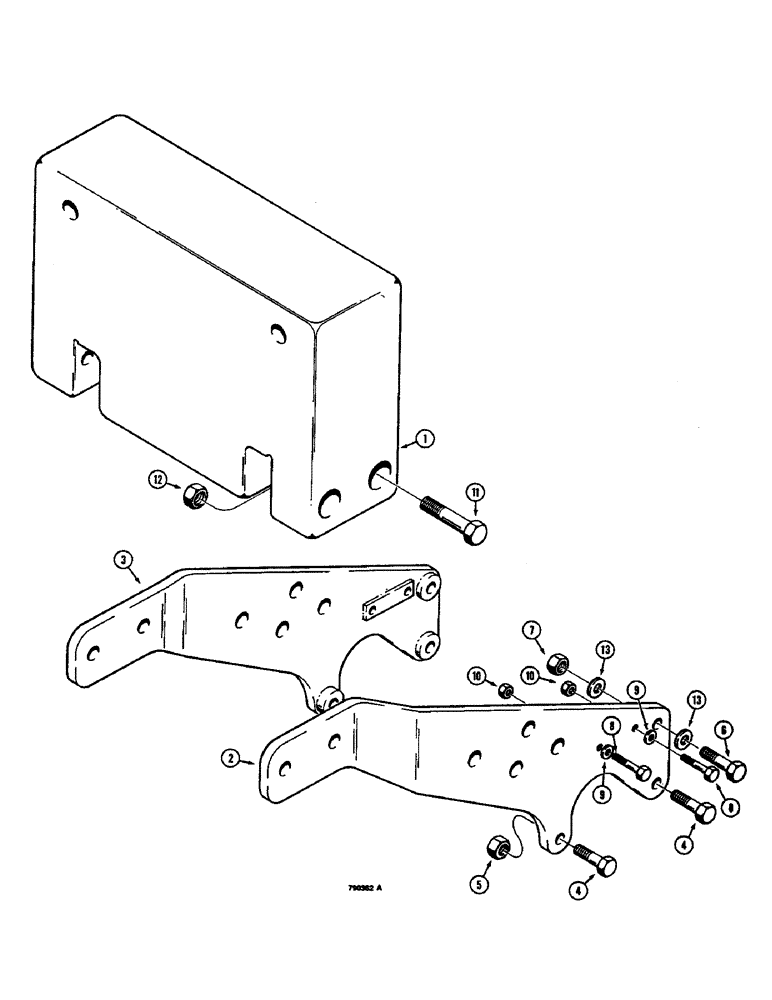

Запчасти Case 350B (276) - REAR COUNTERWEIGHT, LOADER MODELS WITH WINCH (05) - UPPERSTRUCTURE CHASSIS

1

32105

COUNTERWEIGHT - rear, 860 pound (390 KG)

1шт.

2

R29875

ARM - right-hand, counterweight support

1шт.

3

R29876

ARM - left-hand, counterweight support

1шт.

4

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex head, 3/4" - 10 NC x 2-3/4"

4шт.

5

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

6

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

2шт.

7

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

8

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex head, 1/2" - 13 NC x 2-1/4", grade 8

4шт.

9

R24718

WASHER

- flat, 1/2", hardened

4шт.

10

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

11

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

4шт.

12

131-659

NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

4шт.
