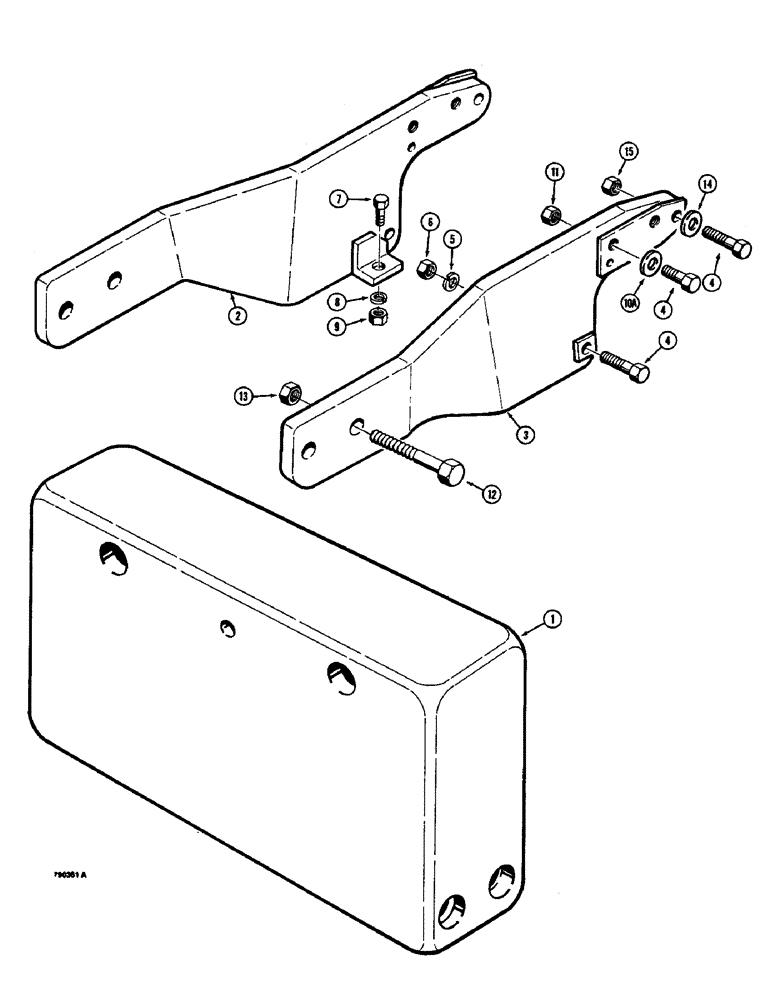

Запчасти Case 350B (274) - REAR COUNTERWEIGHT, LOADER MODELS WITHOUT REAR EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 pound (635 KG)

1шт.

2

D32684

ARM - left-hand, counterweight support

1шт.

3

D32685

SUPPORT

ARM - right-hand, counterweight support

1шт.

4

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

25-1012

NUT,3/4"-10, G5

2шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

25-1010

NUT,5/8"-11, G5

2шт.

10

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex head, 1/2" - 13 NC x 2-1/4", grade 8

4шт.

10a

R24718

WASHER

- hardened, 1/2"

4шт.

11

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

12

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

13

131-659

NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

4шт.

15

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.
