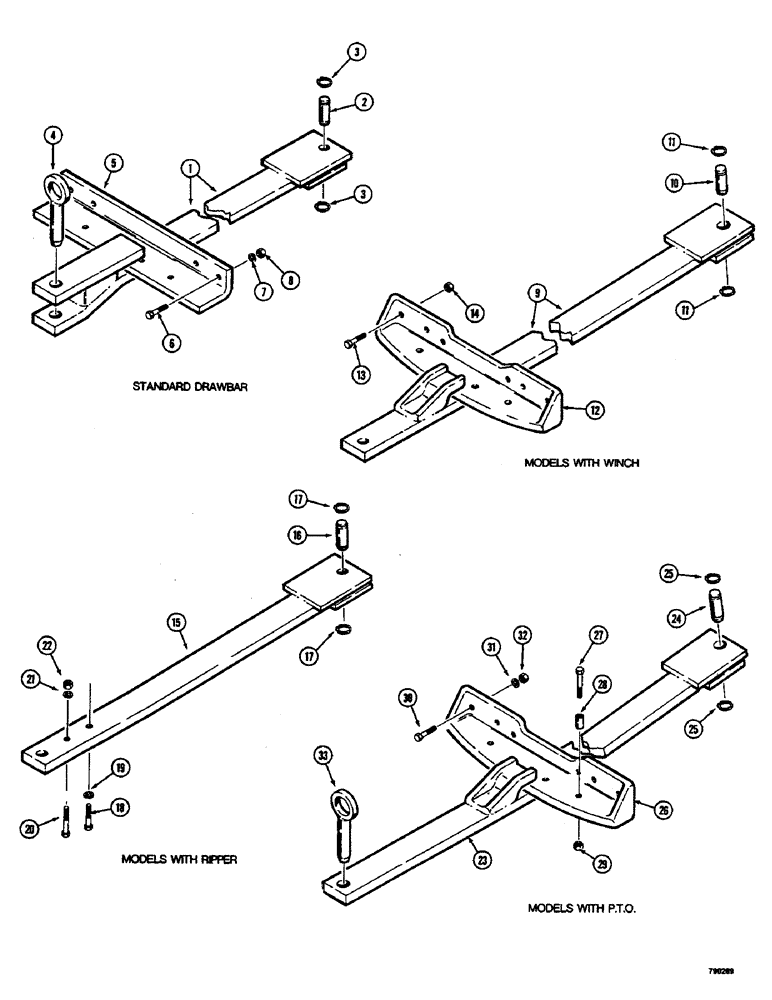

Запчасти Case 350B (270) - DRAWBARS (05) - UPPERSTRUCTURE CHASSIS

1

R42294

DRAW HOOK

DRAWBAR - models without rear mounted equipment

1шт.

2

D33816

PIN

- mounting, drawbar, models without rear mounted equipment

1шт.

3

D26918

SNAP RING,#125, Ext

Ring, Snap, , mounting pin, models without rear mounted equipment #125, Ext

2шт.

4

13073

AXLE PIN

PIN - hitch, models without rear mounted equipment

1шт.

5

D40387

GUIDE - drawbar, models without rear mounted equipment

1шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models without rear mounted equipment Hex, 5/8"-11 x 2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models without rear mounted equipment 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

Models without rear mounted equipment 5/8"-11, G5

4шт.

9

R29833

DRAWBAR - models with winch

1шт.

10

D33816

PIN

- mounting, drawbar, models with winch

1шт.

11

D26918

SNAP RING,#125, Ext

Ring, Snap, , mounting pin, models with winch #125, Ext

2шт.

12

D35674

GUIDE - drawbar, models with winch

1шт.

13

REF

INSTRUCTION

BOLT - comes with winch adapter group, see model 9 & 19 winch parts catalog, from no. 1126

2шт.

14

REF

INSTRUCTION

NUT - comes with winch adapter group, see model 9 & 19 winch parts catalog, form no. 1126, models with winch

2шт.

15

R42291

DRAWBAR - models with ripper

1шт.

16

D33816

PIN

- mounting, drawbar, models with ripper

1шт.

17

D269178

SNAP RING - pin, models with ripper

2шт.

18

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Models with ripper Hex, 5/8"-11 x 2 1/4", G5

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with ripper 5/8"

1шт.

20

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Models with ripper Hex, 5/8"-11 x 2 1/2", G5

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with ripper 5/8"

1шт.

22

25-1010

NUT,5/8"-11, G5

Models with ripper 5/8"-11, G5

1шт.

23

R30040

DRAWBAR - models with PTO

1шт.

24

D33816

PIN

- mounting, drawbar, models with PTO

1шт.

25

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, models with PTO #125, Ext

2шт.

26

D35674

GUIDE - drawbar, models with PTO

1шт.

27

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3", models with PTO

2шт.

28

D33403

BUSHING

- drawbar stop, models with PTO

2шт.

29

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, models with PTO

2шт.

30

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models with PTO Hex, 5/8"-11 x 2", G5

4шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with PTO 5/8"

4шт.

32

25-1010

NUT,5/8"-11, G5

Models with PTO 5/8"-11, G5

4шт.

33

13073

AXLE PIN

PIN - hitch, drawbar, models with PTO

1шт.
