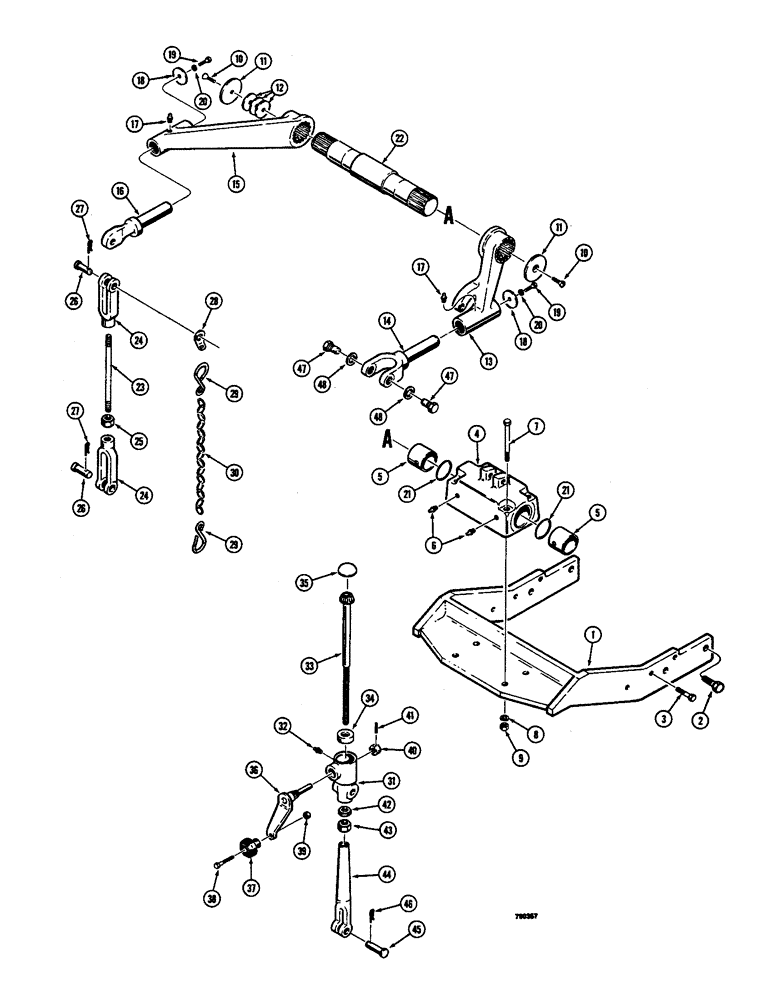

Запчасти Case 350B (264) - THREE POINT HITCH, ROCKSHAFT, HOUSING, AND LIFT LINKS (05) - UPPERSTRUCTURE CHASSIS

1

D33890

CARRIER - rockshaft

1шт.

2

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

4шт.

4

D33977

HOUSING

- rockshaft, Includes: Ref. 5

1шт.

5

A23422

BUSHING

- housing

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

7

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex head, 5/8" - 11 NC x 5"

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

25-1010

NUT,5/8"-11, G5

4шт.

10

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

MACHINE SCREW - flat head, 3/8" - 16 NC x 1"

2шт.

11

A27679

PLATE - end, lift arm

2шт.

12

A27678

SHIM - end plate

1шт.

13

D20612

ARM - lift, right-hand

1шт.

14

A35019

END

CLEVIS - lift arm, right-hand

1шт.

15

D20614

ARM ASSY.

ARM - lift, left-hand

1шт.

16

G16755

CLEVIS - lift arm, left-hand

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

18

G16747

WASHER - retainer, lift arm clevis

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A23423

SEAL

O-RING - rockshaft housing

2шт.

22

A23419

ROCKSHAFT - three point hitch

1шт.

D20652

LINK

ROD ASSEMBLY - lift link, left-hand, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

ROD - lift link, left-hand

1шт.

24

213-8

CLEVIS,3/4"-16

- 3/4" - 16 NF, lift link rod, upper and lower

2шт.

25

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF

1шт.

26

141-8

CLEVIS PIN,3/4" x 1.910", HDN

- 3/4"

2шт.

27

A29054

HAIR PIN COTTER

HAIR PIN - clevis

2шт.

D20504

CHAIN ASSEMBLY - lift link rod, left-hand, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - chain

1шт.

29

A27643

HOOK

S-HOOK - chain

2шт.

30

NSS

NOT SOLD SEPARAT

CHAIN - lift link rod

1шт.

31

A26236

GEARBOX ASSY

HOUSING - adjusting screw

1шт.

32

219-

GREASE FITTING - straight, 1/8" NPT

1шт.

33

A149042

ADJUSTMENT SCREW

SCREW - adjusting, with gear

1шт.

34

A27655

BEARING, BALL

BEARING - thrust, adjusting screw

1шт.

35

41-30

PLUG

- Welch, 1-7/8" diameter

1шт.

36

A28584

CRANK

CRANK - adjusting screw, with gear

1шт.

37

A26845

KNOB

- adjusting screw crank

1шт.

38

A27652

SCREW

BOLT - mounting, knob

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

40

A27651

COLLAR

- locking, crank

1шт.

41

135-45

GROOVE PIN - 5/32" x 1"

1шт.

42

A27656

NUT

- brass, 7/8" - 14 NF

1шт.

43

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, jam, 7/8" - 14 NF

1шт.

44

A35195

YOKE

CLEVIS - adjusting screw

1шт.

45

A27657

PIN

- clevis

1шт.

46

A29054

HAIR PIN COTTER

HAIR PIN - clevis

1шт.

47

A27658

STUD

PIN - pivot, adjusting screw to lift arm clevis

2шт.

48

F20286

WASHER

- flat, pivot pin

1шт.
