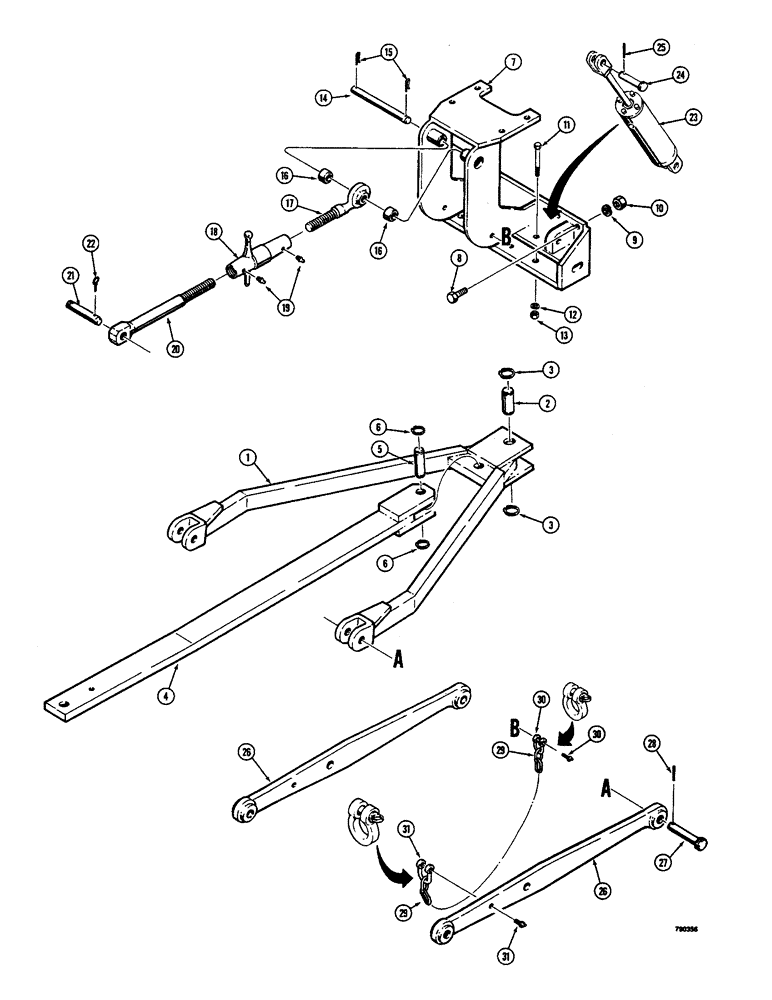

Запчасти Case 350B (262) - THREE POINT HITCH, IMPLEMENT ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R29863

ARM - mounting, drawbar and draft arms

1шт.

2

D33816

PIN

- mounting, arm

1шт.

3

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

4

R29866

DRAWBAR - three point hitch

1шт.

5

D25983

PIN

- drawbar

1шт.

6

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- pin

2шт.

7

D44601

FRAME - mounting, three point hitch

1шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

25-1010

NUT,5/8"-11, G5

4шт.

11

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

14

39798

BRACKET

PIN - mounting, depth adjusting screw

1шт.

15

A29054

HAIR PIN COTTER

HAIR PIN - pin retaining, depth adjusting screw

2шт.

16

D204783

SPACER - mounting, depth adjusting screw

2шт.

17

A7240

SCREW - front, left-hand thread

1шт.

18

A7821

TURNBUCKLE - depth adjusting screw

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

20

D20622

LINK - rear, right-hand thread

1шт.

21

G16735

PIN

- implement attaching

1шт.

22

A30338

PIN

- self-locking

1шт.

23

A11231

CYLINDER

- three point hitch, parts list figure 244

1шт.

24

A27344

PIN - mounting, cylinder

2шт.

25

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

26

D37077

ARM - draft

2шт.

27

D20629

PIN - mounting, draft arm

2шт.

28

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

2шт.

29

D21389

CHAIN - sway, mounting frame to draft arm

2шт.

30

D21858

SCREW AND SHACKLE - draft arm, front

2шт.

31

D37078

SCREW AND SHACKLE - draft arm, rear

2шт.
