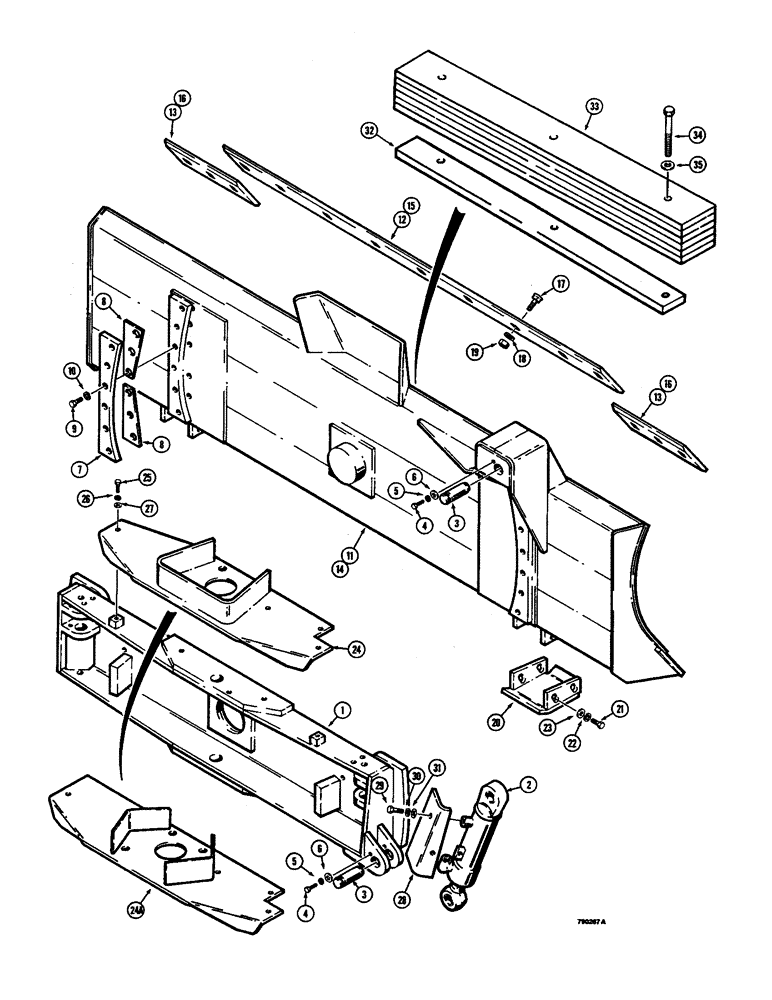

Запчасти Case 350B (258) - DOZER LEVELING BEAM, BLADE, AND TILT CYLINDER (05) - UPPERSTRUCTURE CHASSIS

1

R41522

LEVELING BEAM - used with 80" (2032 mm) wide blade, if used

1шт.

1

R43132

LEVELING BEAM - used with 96" (2438 mm) wide blade, if used

1шт.

2

G101247

JACK BODY

CYLINDER - tilt, parts list figure 240

1шт.

3

D46460

PIN

- tilt cylinder mounting

2шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8"

2шт.

7

D45894

LARGE PLATE

PLATE - guide

2шт.

8

D49144

SHIM

- plate

1шт.

9

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

11

R41545

BLADE - 80" (2032 mm) wide, used on standard dozer models

1шт.

12

R24492

EDGE, CUTTING

CUTTING EDGE - center, used on 80" (2032 mm) wide blade

1шт.

13

NLS

NO LONGER SERVICED

CUTTING EDGE - end, used on 80" (2032 mm) wide blade

2шт.

14

R43105

BLADE - 96 " (2438 mm) wide, used on 60" (1524 mm) gauge LGP dozer models

1шт.

15

16792

EDGE, CUTTING

CUTTING EDGE - center, used on 96" (2438 mm) wide blade

1шт.

16

R29742

BLADE

CUTTING EDGE - end, used on 96" (2438 mm) wide blade

2шт.

17

118-336

PLOW BOLT,1/2"-13 x 1 3/4", G8

- 1/2" - 13 NC x 1-3/4", plated

13шт.

18

92-8

LOCK WASHER,1/2"

13шт.

19

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, grade 8, plated

13шт.

20

R24491

SHOE (ASSY)

SHOE - skid, blade

2шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

22

92-8

LOCK WASHER,1/2"

8шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

24

R41552

GUARD ASSY.

GUARD - at leveling beam, no longer used, order R44034 guard, Ref. 24A

1шт.

24a

R44034

GUARD

- at leveling beam

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

26

92-6

LOCK WASHER,3/8"

5шт.

27

195-25

WASHER,3/8"

- flat, 3/8"

5шт.

28

R24680

GUARD

- tilt cylinder

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

32

R24519

PLATE - counterweight mounting, weld on, parts used on models with a backhoe

1шт.

33

R24518

COUNTERWEIGHT - dozer blade, backhoe models only, parts used on models with a backhoe

6шт.

34

13-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex head, 3/4" - 10 NC x 7-1/2", parts used on models with a backhoe

3шт.

35

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4", hardened, parts used on models with a backhoe

3шт.
