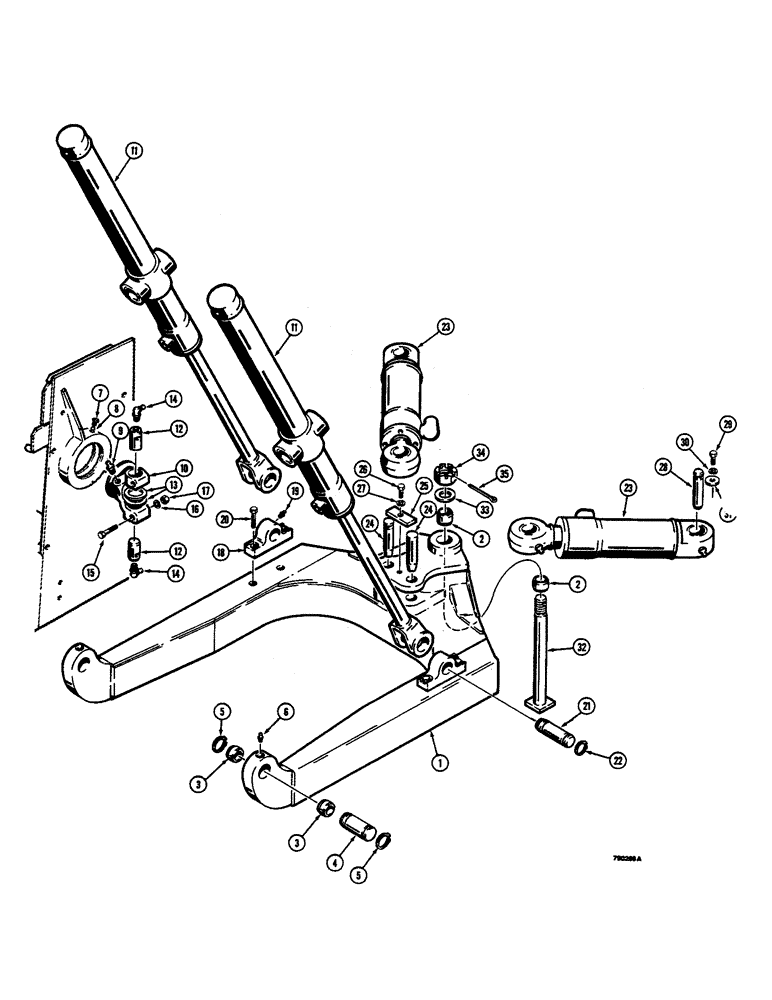

Запчасти Case 350B (256) - DOZER C-FRAME AND CYLINDERS (05) - UPPERSTRUCTURE CHASSIS

1

R41546

C-FRAME - dozer, Includes: Ref. 2 and 3

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- leveling beam mounting

2шт.

3

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- mounting lug at main frame

4шт.

4

D34654

PIN

- C-frame to main frame

2шт.

5

D25279

SNAP RING,M35, Int

- pin

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

7

D28481

PLUG

- special, dozer engine frame

2шт.

8

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

38шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

10

R47082

TRUNNION

- lift cylinder

2шт.

11

G101229

CYLINDER

- lift, parts list figure 236

2шт.

12

D24508

PIN,31.74mm OD x 50.8mm L

- trunnion to lift cylinder

4шт.

13

D43745

WASHER

THRUST WASHER - trunnion, if used

4шт.

14

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Replaces straight grease fitting used in production on some models 90º, 1/8" NPT x .84" lg

4шт.

15

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

D46466

BRACKET

- lift, Serial Range: cylinder-C-frame

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

21

D46467

PIN

- lift, Serial Range: cylinder-C-frame

2шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

23

G101250

CYLINDER

- angle, parts list figure 238

2шт.

24

D46461

PIN,31.75mm OD x 127mm L

- angle, Serial Range: cylinder-C-frame

2шт.

25

D46462

LARGE PLATE

PLATE - pin retaining

1шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

27

92-8

LOCK WASHER,1/2"

1шт.

28

D33150

HEADED PIN

PIN - angle cylinder to leveling beam

2шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

V20216

HOSE

- flat, 3/8"

2шт.

32

D46464

PIN

- leveling, Serial Range: beam-C-frame

1шт.

33

95-22

WASHER,1 3/8" x 3 1/4" x .18"

- flat, 1-3/8" ID

1шт.

34

25-1222

NUT

- hex, slotted, 1-3/8" - NC threads

1шт.

35

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.
