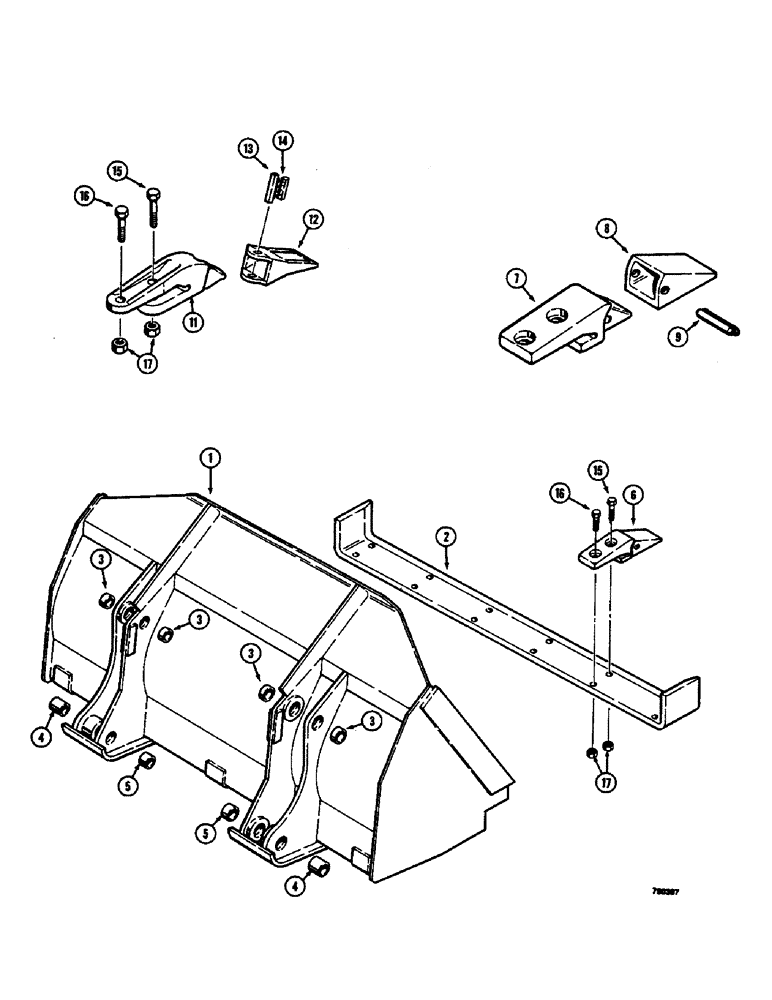

Запчасти Case 350B (252) - LOADER BUCKET (05) - UPPERSTRUCTURE CHASSIS

1

D49911

BUCKET ASSEMBLY - loader, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 5

1шт.

2

D51885

EDGE

CUTTING EDGE - bucket

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- upper

4шт.

4

D33054

BUSHING

- lower, outer

2шт.

5

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- lower, inner

2шт.

6

D50780

TOOTH

ASSEMBLY - loader bucket, standard, Includes: Ref. 7 - 9

6шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket

1шт.

9

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth

1шт.

R42795

TOOTH

ASSEMBLY - loader bucket, heavy duty, Includes: Ref. 11 - 14

6шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

12

R38572

TOOTH

POINT - tooth, bucket

1шт.

13

R35318

PIN

- tooth, bucket

1шт.

14

R35319

LOCK ASSY

LOCK - pin, bucket teeth

1шт.

15

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 UNC x 2-1/2", bucket teeth

6шт.

16

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 UNC x 2-1/4", bucket teeth

6шт.

17

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 UNC, bucket teeth

12шт.
