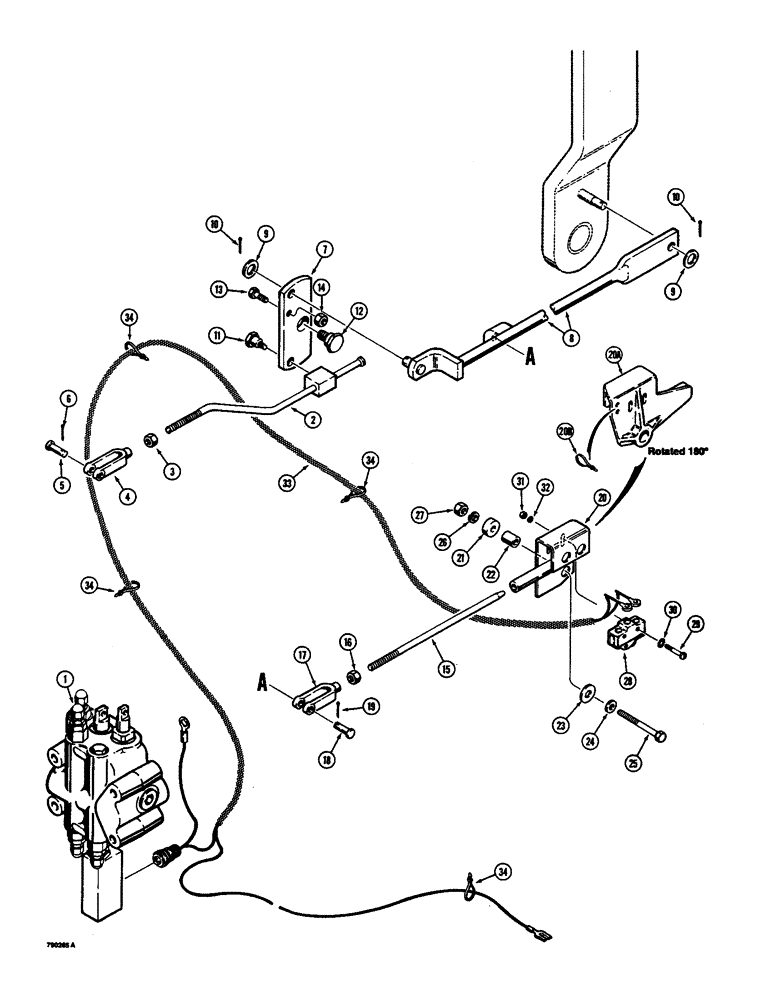

Запчасти Case 350B (250) - LOADER RETURN-TO-DIG AND ANTIROLLBACK (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 206 - 210

1шт.

2

R41919

ROD - bucket control

1шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end, adjustable, 3/8" - 24 NF

1шт.

5

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

6

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

1шт.

7

R43826

LINK

LEVER - bucket control

1шт.

8

R42289

LINK - bucket control

1шт.

9

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

10

132-46

COTTER PIN,1/8" x 3/4"

PIN, Split (Cotter), 1/8" x 3/4"

2шт.

11

D43780

BOLT (SPREADER)

BOLT - shoulder, special, 3/8" - 16 NC, lever to control rod

1шт.

12

A14265

STUD

BOLT - shoulder, special, 1/2" - 20 NF, lever pivot

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, lock, 3/8" - 16 NC

1шт.

15

R42286

ROD

- return-to-dig, to control valve spool eye

1шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end, adjustable, 3/8" - 24 NF

1шт.

18

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

19

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

1шт.

20

D75724

BRACKET

- switch mounting, fabricated metal, no longer available, order Refs. 20A and 20B

1шт.

20a

D94534

BRACKET

- switch mounting, plastic

1шт.

20b

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - harness retaining, 15 inch, if used

1шт.

21

R42287

SPACER

- lift frame

1шт.

22

D76175

BUSHING

SPACER - bracket

1шт.

23

F22333

WASHER - flat, spacer, 21/32" ID

3шт.

24

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

25

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

28

L54683

SWITCH

- return-to-dig

1шт.

29

169-67

MACHINE SCREW - Fillister head, No. 6 - 32 NC x 1-1/8"

2шт.

30

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

31

129-15

NUT,#6-32

2шт.

32

195-507

WASHER,#6

- flat, No. 6

2шт.

33

R42290

HARNESS

-, Serial Range: return-dig

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
