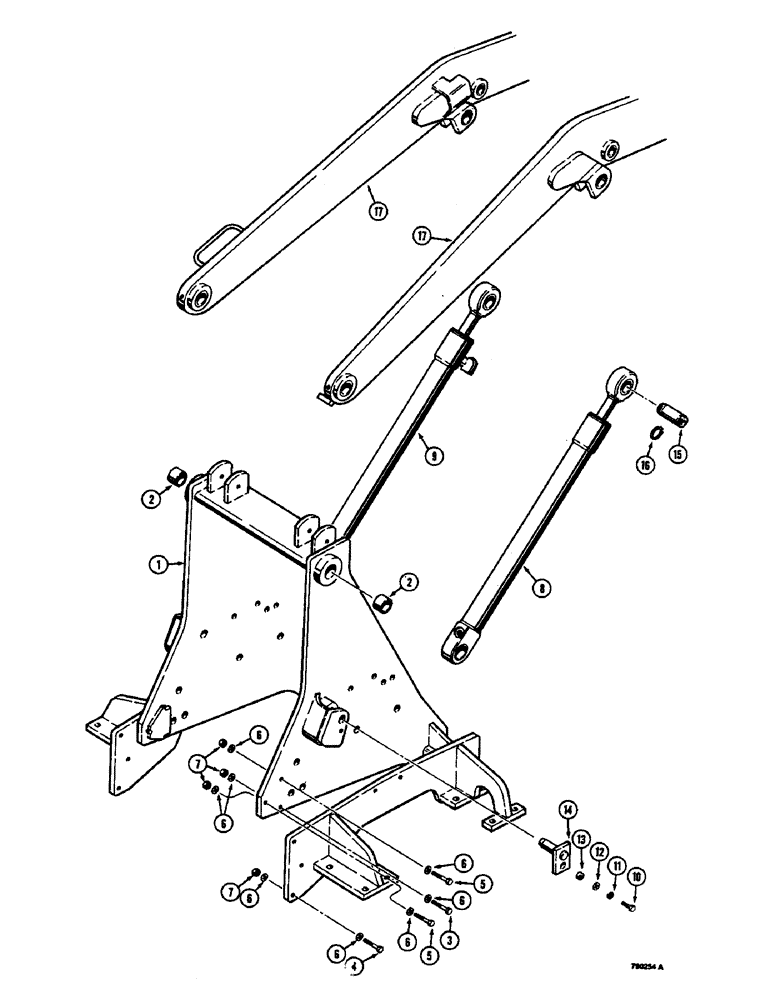

Запчасти Case 350B (246) - LOADER LIFT FRAME, MOUNTING PARTS AND LIFT CYLINERS (05) - UPPERSTRUCTURE CHASSIS

1

R41509

FRAME - loader upright, Includes: Ref. 2

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- loader lift frame

2шт.

3

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex head, 3/4" - 10 NC x 2-3/4"

2шт.

4

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2"

6шт.

5

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex head, 3/4" - 10 NC x 3-1/4"

4шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

24шт.

7

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

12шт.

8

G101242

CYLINDER

- loader lift, right-hand, parts list figure 230

1шт.

9

G101243

CYLINDER

- loader lift, left-hand, parts list figure 230

1шт.

10

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

95-8

WASHER,1/2"

flat 1/2"

2шт.

13

R39697

BUSHING

- pin

2шт.

14

R39712

PIN

- lift cylinder, closed end

2шт.

15

D33142

PIVOT PIN

PIN - lift cylinder, rod end

2шт.

16

D25279

SNAP RING,M35, Int

- cylinder pin, rod end

4шт.

17

R41410

FRAME - loader lift, for bushings see figure 248

1шт.
