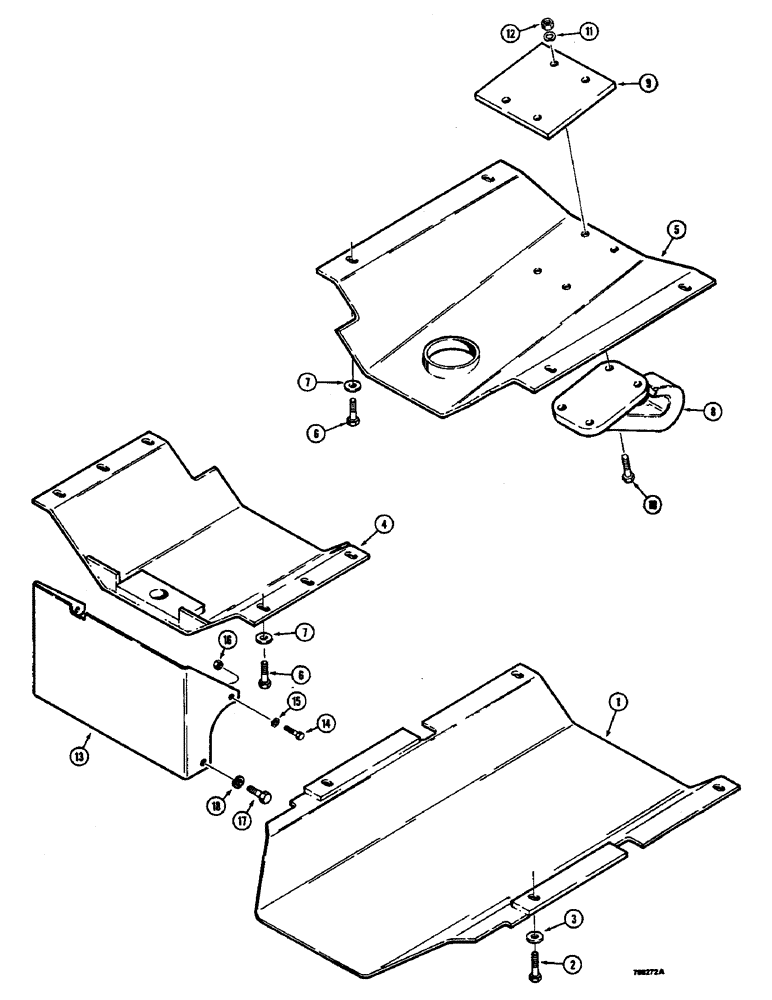

Запчасти Case 350B (284) - UNDERCARRIAGE AND REAR TRANSMISSION GUARDS, AND FRONT PULL HOOK (04) - UNDERCARRIAGE

1

R42285

GUARD - rear, transmission

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

2шт.

4

R41752

GUARD - center, power shuttle

1шт.

5

R41750

GUARD - crankcase, not used with front counterweight, figure 272

1шт.

6

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

10шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

10шт.

8

10940

HOOK

PULL HOOK - if used

1шт.

9

32123

LEVER

PLATE - support, pull hook

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

13

D21408

GUARD - transmission, rear, attaches to axle housing (See figure 110), used on models with no rear equipment or rear counterweight, if used

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

17

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
