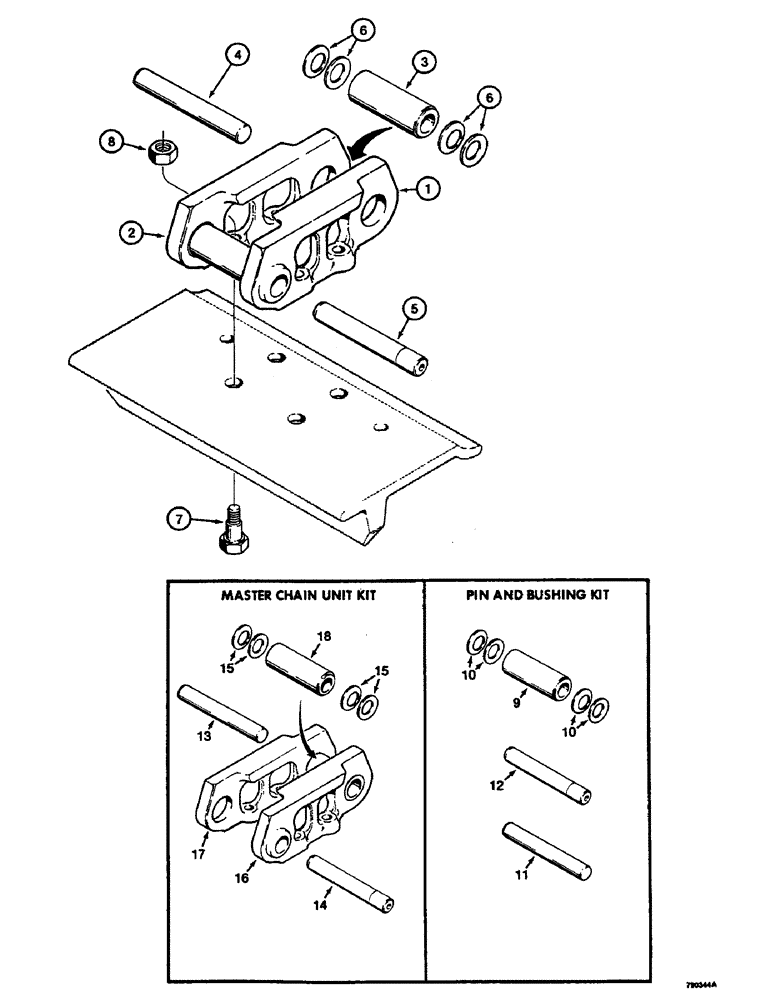

Запчасти Case 350B (138) - TRACK CHAIN - HEAVY DUTY (04) - UNDERCARRIAGE

R39199

CHAIN (AG)

CHAIN ASSEMBLY - 33 unit, heavy duty (Heat-treated), one per each side of tractor, Includes: Ref. 1 - 6

2шт.

1

R39198

LINK

- track chain, right-hand

33шт.

2

R39197

LINK

- track chain, left-hand

33шт.

3

D48007

BUSHING

- track

33шт.

4

D43184

PIN

- track, standard

32шт.

5

D43185

PIN

- track, master

1шт.

6

D48006

SEALING WASHER

BELLEVILLE SPRING - pin

132шт.

7

D41490

BOLT

- hex head, special, 7/16" - 20 NF

264шт.

8

D29712

SPECIAL NUT

- hex, special, 7/16" - 20 NF

264шт.

D48040

KIT

- pin and bushing, sealed track, Includes: Ref. 9 - 12

1шт.

9

D48007

BUSHING

- track, pin kit

74шт.

10

D48006

SEALING WASHER

BELLEVILLE SPRING, pin and bushing kit

296шт.

11

D43398

PIN

- track, service, .003" (.0762 mm) oversize, pin and bushing kit

70шт.

12

D44051

PIN

- track, master, .003" (.0762 mm) oversize, pin and bushing kit

4шт.

R43921

LINK

KIT - master chain unit, sealed chain, Includes: Ref. 13 - 18

1шт.

13

D43184

PIN

- track, standard, master chain unit kit

1шт.

14

D43185

PIN

- track, master, chain unit kit

1шт.

15

D48006

SEALING WASHER

BELLEVILLE SPRING - pin, master chain unit kit

4шт.

16

R39198

LINK

- track chain, right-hand, master unit kit

1шт.

17

R39197

LINK

- track chain, left-hand, master unit kit

1шт.

18

D48007

BUSHING

- track, master chain unit kit

1шт.
