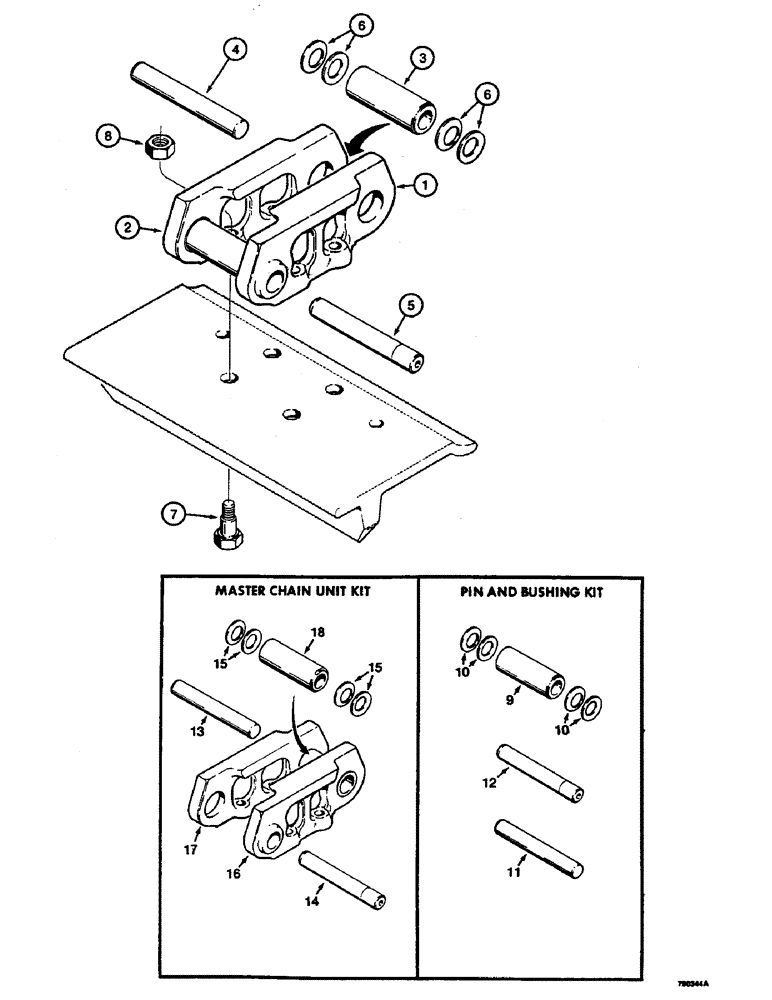

Запчасти Case 350B (136) - TRACK CHAIN - STANDARD (04) - UNDERCARRIAGE

R41051

TRACK CHAIN

CHAIN ASSEMBLY - 33 unit, standard, one per each side of tractor, Includes: Ref. 1 - 6

2шт.

1

R41050

LINK

- track chain, right-hand

33шт.

2

R41049

DRAG LINK

LINK - track chain, left-hand

33шт.

3

D48669

BUSHING

- track

33шт.

4

32831

PIN

- track, standard

32шт.

5

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master

1шт.

6

D48668

SEALING WASHER

BELLEVILLE SPRING - pin

132шт.

7

D41490

BOLT

- hex head, special, 7/16" - 20 NF

264шт.

8

D29712

SPECIAL NUT

- hex, special, 7/16" - 20 NF

264шт.

D48934

PIN

KIT - pin and bushing, sealed track, Includes: Ref. 9 - 12

1шт.

9

D48669

BUSHING

- track, pin and bushing kit

66шт.

10

D48668

SEALING WASHER

BELLEVILLE SPRING - pin, and bushing kit

264шт.

11

32836

PIN

- track, service, .003" (.0762 mm) oversize, pin and bushing kit

62шт.

12

C43537

PIN - track, master, .003" (.0762 mm) oversize, bushing kit

4шт.

R43396

DRAG LINK

KIT - master chain unit, sealed chain, Includes: Ref. 13 - 18

1шт.

13

32836

PIN

- track, service, .003" (.0762 mm) oversize, master chain unit kit

1шт.

14

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master, chain unit kit

1шт.

15

D48668

SEALING WASHER

BELLEVILLE SPRING - pin, master chain unit kit

8шт.

16

R41050

LINK

- track chain, right-hand, master unit kit

1шт.

17

R41049

DRAG LINK

LINK - track chain, left-hand, master unit kit

1шт.

18

D48669

BUSHING

- track, master chain unit kit

1шт.
