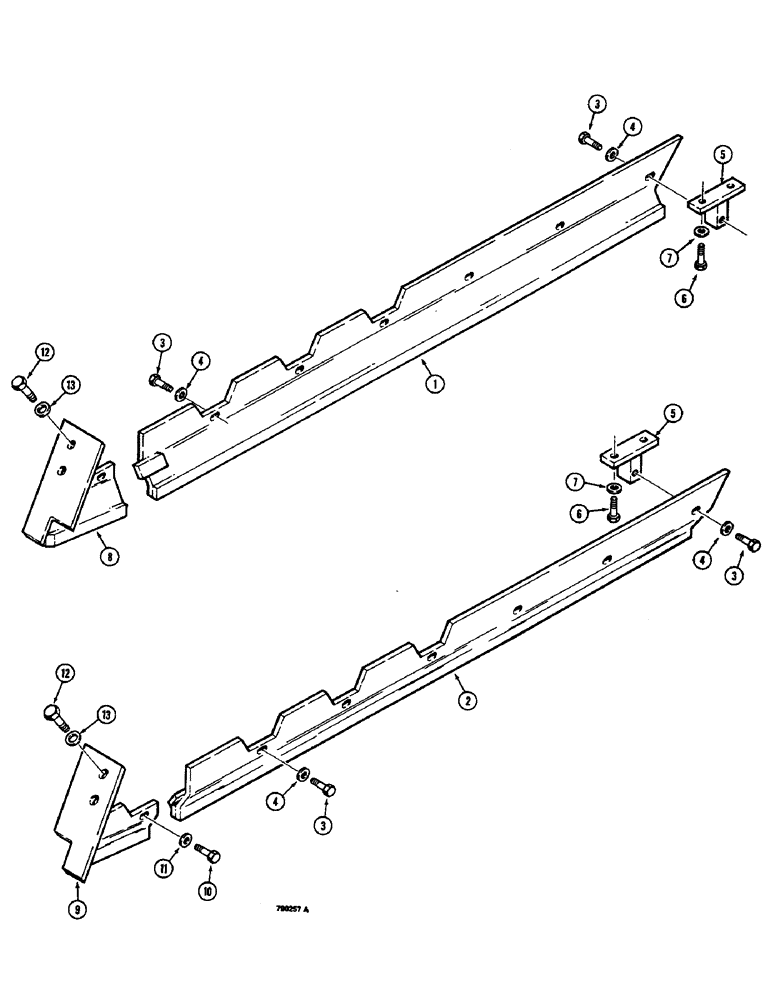

Запчасти Case 350B (134) - TRACK GUARDS (04) - UNDERCARRIAGE

1

R44054

GUARD

TRACK GUARD - front, left-hand

2шт.

2

R44053

GUARD

TRACK GUARD - front, right-hand

2шт.

3

114-448

BOLT,Locking, 1/2" - 20 x 1-1/4", Gr 5

- hex head, 1/2" - 20 NF x 1-1/4"

24шт.

4

R24718

WASHER

- flat, hardened, 1/2"

24шт.

5

D43601

BRACKET

- track guard mounting

8шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite 242 (Blue) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

7

R24718

WASHER

- flat, hardened, 1/2"

16шт.

8

R44057

PROTECTOR

TRACK GUARD - rear, left-hand

2шт.

9

R44056

GUARD

TRACK GUARD - rear, right-hand

2шт.

10

114-448

BOLT,Locking, 1/2" - 20 x 1-1/4", Gr 5

- hex head, 1/2" - 20 NC x 1-1/4"

4шт.

11

R24718

WASHER

- flat, hardened, 1/2"

4шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite 242 (Blue) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

13

R24718

WASHER

- flat, hardened, 1/2"

8шт.
