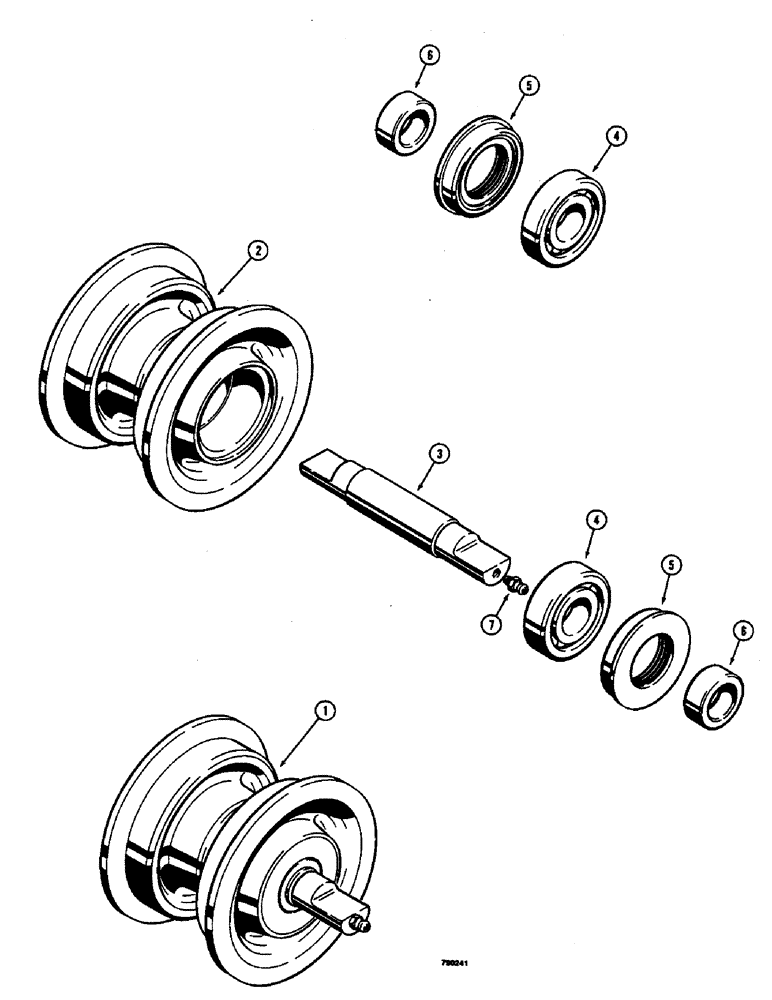

Запчасти Case 350B (128) - D31698 TRACK ROLLER, WITH SEPARATE MOUNTING BRACKET, IF USED (04) - UNDERCARRIAGE

1

D31698

ROLLER

TRACK ROLLER ASSEMBLY - with separate mounting bracket, without face seal, no longer available, order R36470 roller assembly on figure 130, Includes: Ref. 2 - 7

1шт.

For identification, track rollers without a face seal on this figure have a grease fitting in the end of the roller shaft. For face seal roller, see figure 130.

1шт.

2

D31697

BEARING, ROLLER

ROLLER - track

1шт.

D12201

KIT

- service, D31698 track roller, Includes: Ref. 3 - 7

1шт.

3

32056

SHAFT

- track roller

1шт.

4

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BALL BEARING - track roller

2шт.

5

R46522

OIL SEAL

OIL SEAL - track roller

2шт.

6

D31695

SPACER

- bearing

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.
