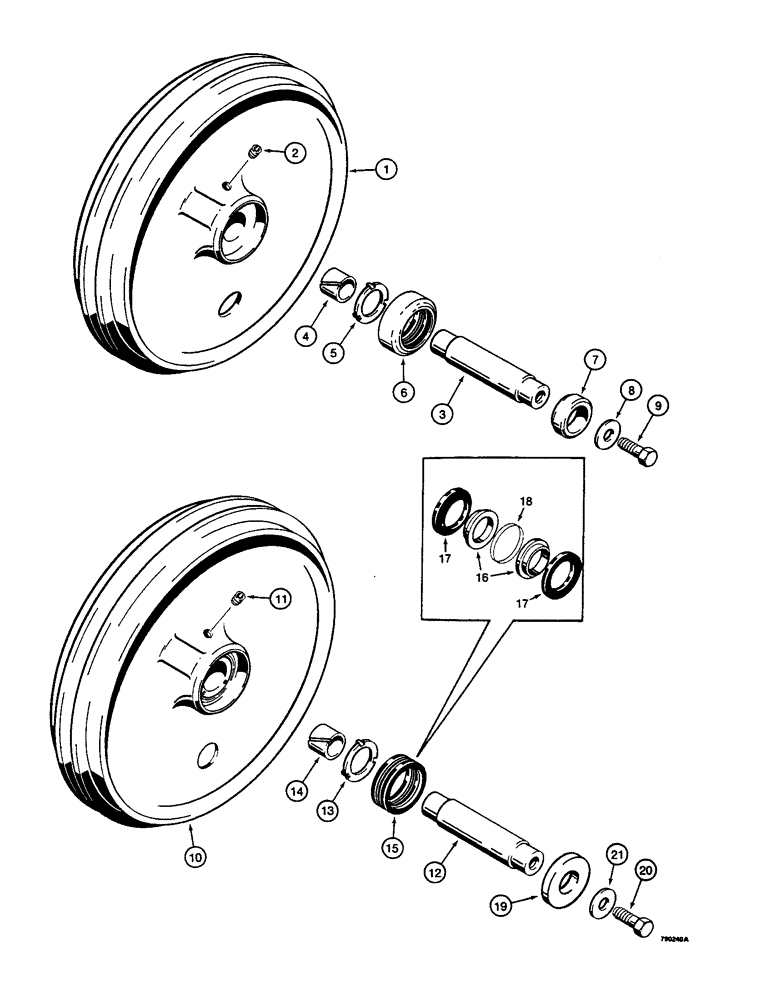

Запчасти Case 350B (126) - IDLER (04) - UNDERCARRIAGE

R41455

FRONT IDLER

IDLER ASSEMBLY - without face seal, no longer available, order R43724 idler assembly, see below, Includes: Ref. 1 - 7

2шт.

1

R41436

FRONT IDLER

HUB, idler assembly - without face seal

1шт.

2

221-841

PLUG

- hex socket head, 1/4" NPT, idler assembly - without face seal

1шт.

3

D51281

SHAFT

idler assembly - without face seal

1шт.

4

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, idler assembly - without face seal

2шт.

5

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

THRUST WASHER, idler assembly - without face seal

2шт.

6

R36330

OIL RESERVOIR

OIL SEAL, idler assembly - without face seal

2шт.

7

R33866

SPACER

- shaft support, idler assembly - without face seal

2шт.

8

H49254

WASHER

- hardened, 3/4", idler assembly - without face seal

4шт.

9

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Use with Loctite 271 (High strength), idler assembly - without face seal Hex, 3/4"-10 x 1 1/4", G5

4шт.

R43724

DRIVE SPROCKET

IDLER ASSEMBLY - with face seal, Includes: Ref. 10 - 19

2шт.

10

NSS

NOT SOLD SEPARAT

HUB, idler assembly - with face seal

1шт.

11

221-841

PLUG

- hex socket head, 1/4" NPT, idler assembly - with face seal

1шт.

12

D51281

SHAFT

idler assembly - with face seal

1шт.

13

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

THRUST WASHER, idler assembly - with face seal

2шт.

14

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, idler assembly - with face seal

2шт.

15

R39273

SEAL

FACE SEAL - idler, assembly, Includes: Ref. 16 - 18

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - seal, split, idler assembly - with face

1шт.

D36826

SEAL KIT

KIT - face seal repair, idler assembly - with, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - rubber, idler assembly - with face seal

2шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - plastic, idler assembly - with face seal

1шт.

19

D35265

COLLAR

BUSHING - shaft, idler assembly - with face seal

2шт.

20

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Use with Loctite 271 (High strength), idler assembly - with face seal Hex, 3/4"-10 x 1 1/4", G5

4шт.

21

H49254

WASHER

- hardened, 3/4", idler assembly - with face seal

4шт.
