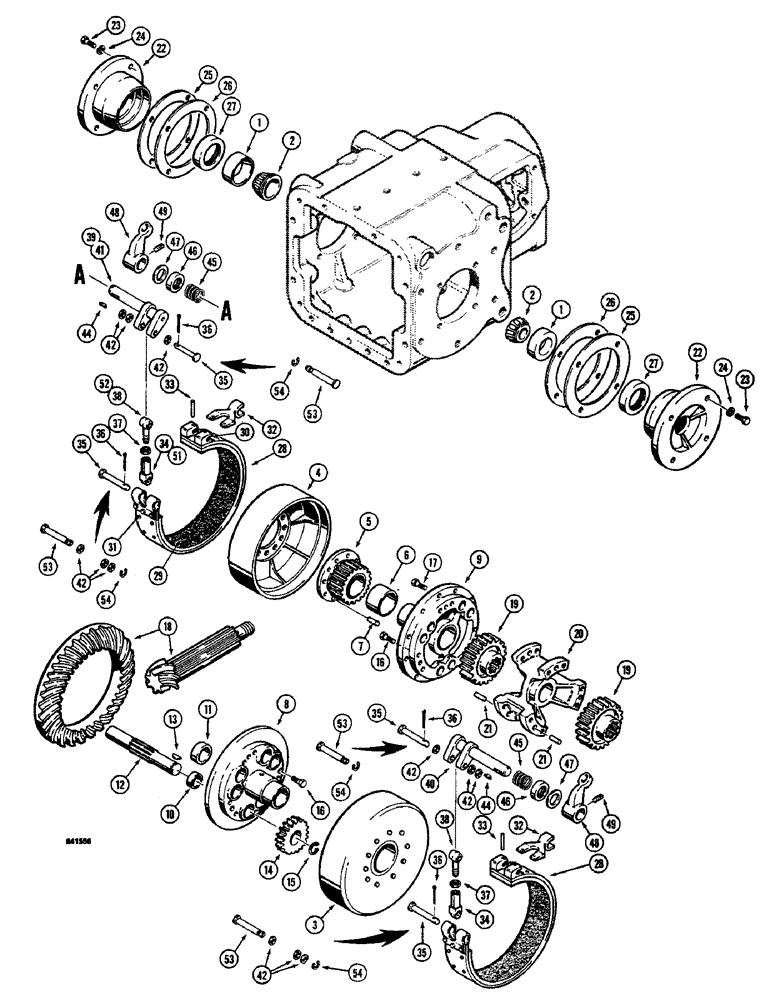

Запчасти Case 350B (116) - TRANSMISSION, DIFFERENTIAL AND BRAKES (03) - TRANSMISSION

D20533

DIFFERENTIAL AND BRAKE DRUM ASSEMBLY - complete, Includes: Ref. 1 - 21

1шт.

1

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - tapered roller bearing, carrier

2шт.

2

40465

ROLLER BEARING,1.75" ID x 1"

TAPERED ROLLER BEARING - differential carrier

2шт.

3

D20425

PINION

DRUM, GEAR AND BUSHING ASSEMBLY - brake, Includes: Ref. 4 - 7

2шт.

4

NLS

NO LONGER SERVICED

DRUM - brake

1шт.

5

D20426

GEAR

ASSEMBLY - brake drum, Includes: Ref. 6

1шт.

6

11288

BEARING

BUSHING - gear

1шт.

7

14934

RIVET

- brake drum

10шт.

8

NLS

NO LONGER SERVICED

HOUSING - differential, right-hand

1шт.

9

N13046

DIFFERENTIAL

HOUSING - differential, left-hand, Includes: Ref. 10 and 11

1шт.

10

CASCAS11414

BUSHING - differential shaft

6шт.

11

11415

BEARING

BUSHING - sun gear

1шт.

12

D20422

SHAFT

- differential

6шт.

13

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

6шт.

14

D20421

PLANETARY GEAR

GEAR - planetary

6шт.

15

11455

RING, SNAP

SNAP RING - planetary gear

6шт.

16

CAS11424

SCREW

BOLT - special, differential housings to center carrier

12шт.

16a

391-701

ELECTRICAL WIRE

LOCK WIRE - housing bolts, 18 gauge x 6", not shown

6шт.

17

NLS

NO LONGER SERVICED

BOLT - special, left-hand differential housing to ring gear

12шт.

17a

391-712

LOCK WIRE - differential bolts, 18 gauge x 26", not shown

1шт.

18

R25584

GEAR WHEEL

PINION SHAFT AND RING GEAR - differential, matched set

1шт.

19

D20423

PINION

GEAR - sun

2шт.

20

D30698

HOUSING

CARRIER - differential, center

1шт.

21

CAS11422

DOWEL

PIN - differential housings to center carrier

6шт.

22

11425

CARRIER

- bearing, differential

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

CAS11427

SHIM

- .004" (0.1 mm) thick

1шт.

26

CAS11426

SHIM

- .010" (0.25 mm) thick

1шт.

27

D49930

OIL SEAL

- differential

2шт.

28

R29904

BAND

AND LINING ASSEMBLY - brake, one per side, Includes: Ref. 29 - 31

2шт.

29

NSS

NOT SOLD SEPARAT

LINING - brake band

1шт.

30

D23567

RIVET - brake band, if used

1шт.

31

D26492

RIVET

- brake band lining

19шт.

32

D28973

SPACER

STRUT - brake

2шт.

33

138-44

LOCK PIN,3/32" x 15/16", Slotted

PIN, 3/32" x 15/16", Slotted

4шт.

34

REF

INSTRUCTION

CLEVIS - brake band, 7/16" - 20 NF internal threads, 1-3/4" total length, no longer used, order N7516 kit, see below

2шт.

35

REF

INSTRUCTION

CLEVIS PIN - retained by cotter pin, no longer used, order clevis pin and snap ring (Refs. 53 and 54) below

4шт.

36

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", used with ref. 35 clevis pin, if used

4шт.

37

D23383

NUT

- hex, locking, 7/16" - 20 NF, used with ref. 34 clevis only, if used

2шт.

38

REF

INSTRUCTION

ARM - clevis adjusting, 7/16" - 20 NF threads, no longer used, order N7516 kit, see below

2шт.

39

D23768

CAM

ACTUATOR - brake, left-hand

1шт.

40

D23767

CAM

ACTUATOR - brake, right-hand

1шт.

41

RESERVED

1шт.

42

D23404

WASHER

- clevis pin, used in upper position next to brake actuator on models with cotter pins, used in lower position next to brake band on models with snap rings

6шт.

43

RESERVED

1шт.

44

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

- No. 11, brake actuator

2шт.

45

11439

SPRING

- brake actuator

2шт.

46

A31178

OIL SEAL

- brake actuator

2шт.

47

11440

WASHER

- brake lever

2шт.

48

D23011

LEVER

- brake, steering rod connection

2шт.

49

D23016

SCREW

SET SCREW - brake lever retaining

2шт.

50

391-804

ELECTRICAL WIRE

LOCKWIRE - brake lever set screw, not shown

8шт.

N7516

LINKAGE

KIT - brake adjusting, Includes: Ref. 51 - 54

2шт.

51

NSS

NOT SOLD SEPARAT

CLEVIS - brake band, 1/2" - 20 NF internal threads, 2" total length

1шт.

52

NSS

NOT SOLD SEPARAT

ARM - clevis adjusting, 1/2" - 20 NF threads

1шт.

53

N7046

PIN

CLEVIS PIN - retained by snap ring (Ref. 54)

2шт.

54

A27795

RING

SNAP RING - clevis pin

2шт.
