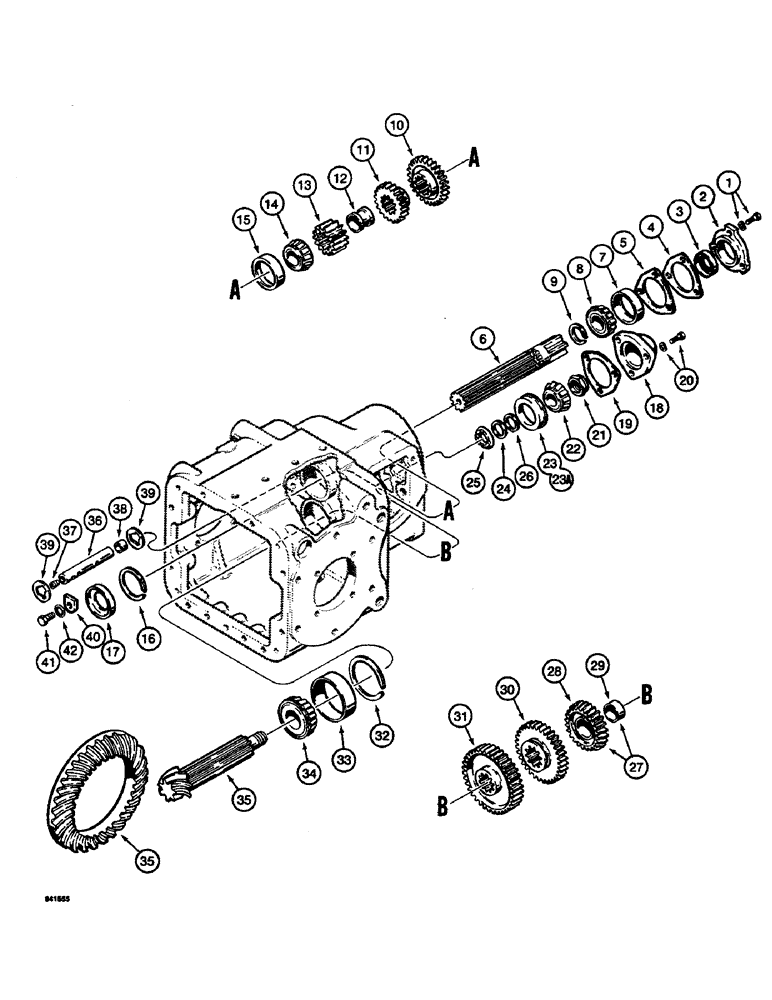

Запчасти Case 350B (112) - TRANSMISSION, DIFFERENTIAL AND GEARS (03) - TRANSMISSION

1

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT AND LOCK WASHER - bearing cap

3шт.

2

D66232

CAP

- input shaft front bearing

1шт.

3

D80532

OIL SEAL

OIL SEAL - bearing cap

1шт.

4

D20541

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

4

11367

SHIM

- .010" (0.25 mm) thick

1шт.

4

N13045

SHIM,.005" Thk

(0.12 mm) .005" Thk

1шт.

5

51200023

GASKET

- front bearing cap, input shaft

1шт.

6

D33873

MAIN SHAFT

INPUT SHAFT - transmission

1шт.

7

O4056TS

CUP

- tapered roller bearing, front

1шт.

8

A31074

CONE

TAPERED ROLLER BEARING - front, input shaft

1шт.

9

A29978

RING, SNAP

RETAINING RING - front bearing, input shaft

1шт.

10

11366

GEAR

- input shaft, constant mesh

1шт.

11

11365

GEAR

- input shaft, second speed

1шт.

12

NLS

NO LONGER SERVICED

- input shaft gears

1шт.

13

CAS11363

PINION

GEAR - input shaft, low and reverse

1шт.

14

A31074

CONE

TAPERED ROLLER BEARING - rear, input shaft

1шт.

15

O4056TS

CUP

- tapered roller bearing, rear

1шт.

16

11453

TAPERED BEARING

RETAINING RING - rear bearing, input shaft, used before Clark transmission model no. S70TS-48 only

1шт.

If replacing D38919 housing assembly (Used before Clark transmission model no. S70TS-48) with N8350 housing (Used on Clark transmission model no. S70TS-48 and after - see figure 108 for housings), you must order O4056TS bearing cup and A31272 bearing (Refs. 22 and 23A) to replace refs. 22 and 23 currently on your pinion shaft. You also must remove from your transmission assembly ref. 16 retaining ring and ref. 17 oil cup (Above), and ref. 32 retaining ring (On figure 112).

1шт.

17

11371

CUP ASSY.

OIL SEAL - rear bearing, input shaft, used before Clark transmission model no. S70TS-48 only

1шт.

If replacing D38919 housing assembly (Used before Clark transmission model no. S70TS-48) with N8350 housing (Used on Clark transmission model no. S70TS-48 and after - see figure 108 for housings), you must order O4056TS bearing cup and A31272 bearing (Refs. 22 and 23A) to replace refs. 22 and 23 currently on your pinion shaft. You also must remove from your transmission assembly ref. 16 retaining ring and ref. 17 oil cup (Above), and ref. 32 retaining ring (On figure 112).

1шт.

18

D37368

CYLINDER END CAP

CAP - pinion shaft, front bearing

1шт.

19

D37369

GASKET

- front bearing cap, pinion shaft

1шт.

20

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT AND LOCK WASHER - bearing cap

3шт.

21

11380

NUT

- adjusting, pinion shaft, front bearing

1шт.

22

A31272

ROLLER BEARING,1" ID x 0.8125"

TAPERED ROLLER BEARING - front, pinion shaft

1шт.

If replacing D38919 housing assembly (Used before Clark transmission model no. S70TS-48) with N8350 housing (Used on Clark transmission model no. S70TS-48 and after - see figure 108 for housings), you must order O4056TS bearing cup and A31272 bearing (Refs. 22 and 23A) to replace refs. 22 and 23 currently on your pinion shaft. You also must remove from your transmission assembly ref. 16 retaining ring and ref. 17 oil cup (Above), and ref. 32 retaining ring (On figure 112).

1шт.

23

D37370

BEARING CUP,2.6542" OD x 0.625"

CUP - tapered roller bearing, front, pinion shaft, used before Clark transmission model no. S70TS-48 only

1шт.

If replacing D38919 housing assembly (Used before Clark transmission model no. S70TS-48) with N8350 housing (Used on Clark transmission model no. S70TS-48 and after - see figure 108 for housings), you must order O4056TS bearing cup and A31272 bearing (Refs. 22 and 23A) to replace refs. 22 and 23 currently on your pinion shaft. You also must remove from your transmission assembly ref. 16 retaining ring and ref. 17 oil cup (Above), and ref. 32 retaining ring (On figure 112).

1шт.

23a

O4056TS

CUP

- tapered roller bearing, front, pinion shaft, used on Clark transmission model no. S70TS-48 and after

1шт.

If replacing D38919 housing assembly (Used before Clark transmission model no. S70TS-48) with N8350 housing (Used on Clark transmission model no. S70TS-48 and after - see figure 108 for housings), you must order O4056TS bearing cup and A31272 bearing (Refs. 22 and 23A) to replace refs. 22 and 23 currently on your pinion shaft. You also must remove from your transmission assembly ref. 16 retaining ring and ref. 17 oil cup (Above), and ref. 32 retaining ring (On figure 112).

1шт.

24

D27621

SPACER

WASHER - hardened, .0469" (1.19 mm) thick

1шт.

25

11378

BELLEVILLE WASHER

- retaining, pinion shaft third gear

1шт.

26

D27618

SHIM,.004" Thk

Steel (0.1 mm) .004" Thk

1шт.

26

D27619

SHIM,.007" Thk

Steel (0.18 mm) .007" Thk

1шт.

26

D27620

SHIM,.010" Thk

Steel (0.25 mm) .010" Thk

1шт.

27

11375

GEAR

ASSEMBLY - pinion shaft, third, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - third

1шт.

29

11376

BUSHING

- third gear

1шт.

30

D37372

GEAR

- sliding, pinion shaft, second and third

1шт.

31

NLS

NO LONGER SERVICED

- pinion shaft, first and reverse

1шт.

32

11451

RING, SNAP

RETAINING RING - rear bearing, pinion shaft, used before Clark transmission model no. S70TS-48 only

1шт.

If replacing D38919 housing assembly (Used before Clark transmission model no. S70TS-48) with N8350 housing (Used on Clark transmission model no. S70TS-48 and after - see figure 108 for housings), you must order O4056TS bearing cup and A31272 bearing (Refs. 22 and 23A on figure 112) to replace refs. 22 and 23 currently on your pinion shaft. You also must remove from your transmission assembly ref. 16 retaining ring and ref. 17 oil cup (Figure 112), and ref. 32 retaining ring above.

1шт.

33

CAS40385

BEARING

CUP - tapered roller bearing, rear

1шт.

34

40384

ROLLER BEARING

TAPERED ROLLER BEARING - rear, pinion shaft

1шт.

35

R25584

GEAR WHEEL

PINION SHAFT AND RING GEAR - differential, matched set, Includes: Ref. 36 and 37

1шт.

36

CAS34593

SHAFT

- reverse idler

1шт.

37

S117865

PLUG

- pipe, slotted, shaft

1шт.

38

D49381

SPACER

- reverse idler shaft, no longer used, not required

1шт.

39

D29626

WASHER

THRUST WASHER - reverse idler, no longer used, not required

2шт.

40

11385

LOCK ASSY

TAB - locking, reverse idler shaft

1шт.

41

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

42

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.
