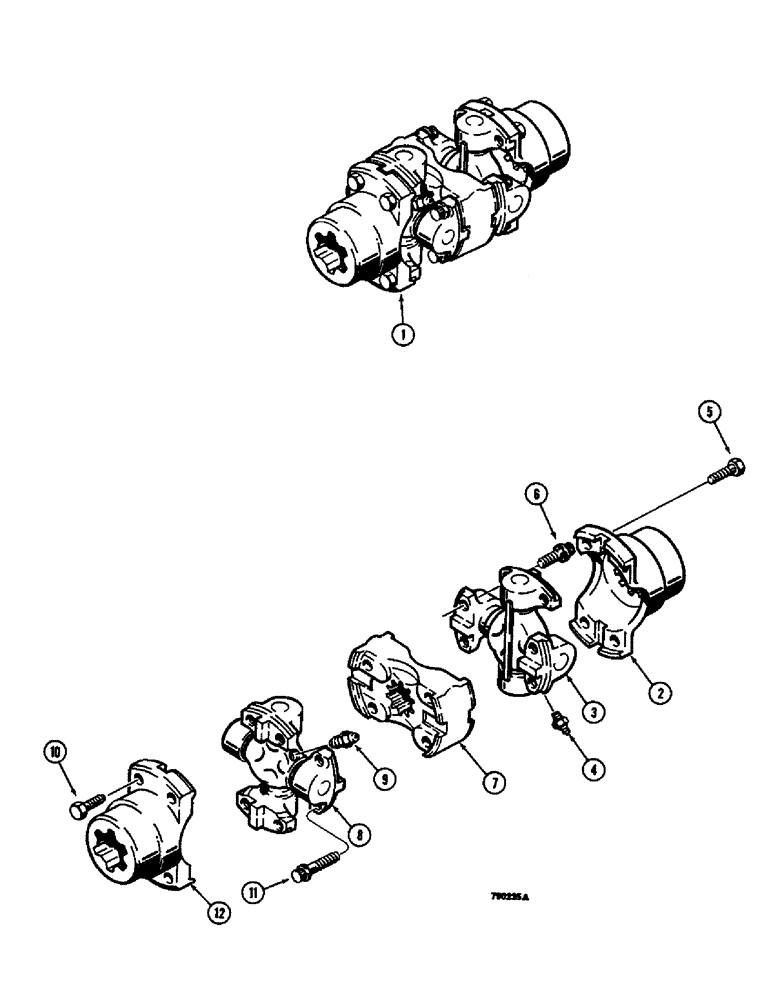

Запчасти Case 350B (106) - DRIVE SHAFT ASSEMBLY (03) - TRANSMISSION

1

D48484

YOKE

DRIVE SHAFT ASSEMBLY - transmission, Includes: Ref. 2 - 12

1шт.

2

D50107

FORK

YOKE - power shuttle end, 10 spline

1шт.

D73645

U-JOINT SPIDER

UNIVERSAL JOINT ASSEMBLY - power shuttle end, Includes: Ref. 3 - 6

1шт.

3

D50108

U-JOINT SPIDER

UNIVERSAL JOINT - power shuttle end (replaces D73645), Includes: Ref. 4

1шт.

4

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

1шт.

5

D50113

BOLT

BOLT - hex head, yoke

4шт.

6

D50114

12 PT SCREW

SCREW - ferry head, universal joint

4шт.

7

D50109

YOKE

- center

1шт.

D73646

U-JOINT SPIDER

UNIVERSAL JOINT ASSEMBLY - transmission end, Includes: Ref. 8 - 11

1шт.

8

D50110

DIFF. SPIDER

UNIVERSAL JOINT - transmission end, Includes: Ref. 9

1шт.

9

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

1шт.

10

D50113

BOLT

BOLT - hex head, yoke

4шт.

11

D50114

12 PT SCREW

SCREW - ferry head, universal joint

4шт.

12

D50111

FORK

YOKE - transmission end, 6 spline

1шт.
