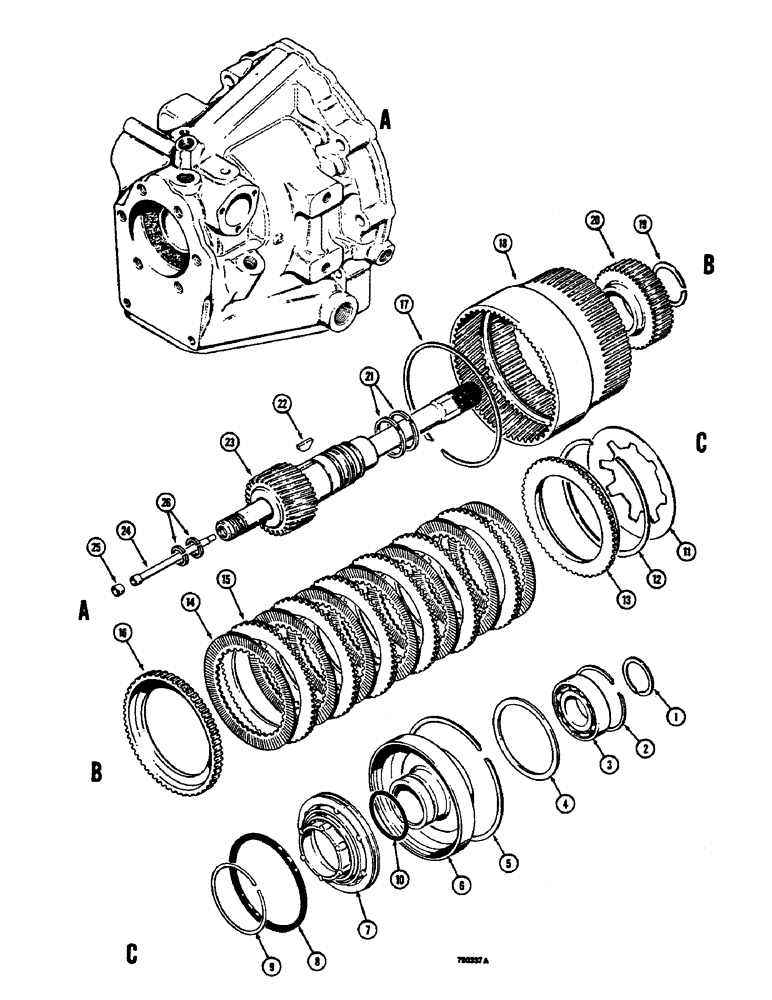

Запчасти Case 350B (102) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (03) - TRANSMISSION

R43949

TRANSMISSION

POWER SHUTTLE ASSEMBLY - complete parts list figures 96-104, Includes: Ref. 1 - 26

1шт.

1

D50042

RING

SNAP RING - bearing retaining, small

1шт.

2

D50043

RING

SNAP RING - bearing retaining, large

1шт.

3

D50044

BALL BEARING

- clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

THRUST WASHER - forward clutch

1шт.

D83123

GEAR, RING

RING GEAR AND CLUTCH ASSEMBLY - power shuttle, Includes: Ref. 5 - 18

1шт.

5

D50046

RING

SNAP RING - ring gear retaining

1шт.

6

D50075

CYLINDER

- forward clutch

1шт.

7

D70670

PISTON

- forward clutch

1шт.

8

D50077

RING

- piston, square seal

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

- bearing, forward clutch

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING - cylinder

1шт.

11

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

BELLEVILLE SPRING - forward clutch

1шт.

12

D50048

CIRCLIP

RING - retaining, pressure plate

1шт.

13

D50081

PLATE,139.12mm OD

- pressure, front

1шт.

14

D50082

PLATE

FRICTION DISC - internal teeth

7шт.

15

D50083

PLATE

DISC - flat steel, external teeth

6шт.

16

D50084

PLATE,139.45mm OD

- pressure, rear

1шт.

17

CASD50051

RING

SNAP RING - .050" to .054" (1.27 mm to 1.37 mm) thick

1шт.

17

D78397

RING

SNAP RING - .062" to .066" (1.575 mm to 1.676 mm) thick

1шт.

17

D50052

RING

SNAP RING - .074" to .078" (1.88 mm to 1.98 mm) thick

1шт.

17

D78398

RING

SNAP RING - .084" to .088" (2.134 mm to 2.235 mm) thick

1шт.

17

D50053

RING

SNAP RING - .096" to .100" (2.44 mm to 2.54 mm) thick

1шт.

18

D50054

GEAR

RING GEAR - shuttle

1шт.

19

D50049

RING

RETAINING RING - clutch hub

1шт.

20

D75853

HUB

- clutch

1шт.

21

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

22

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Input shaft #15, 1/4" x 1", HT

1шт.

D70666

GEAR

INPUT SHAFT ASSEMBLY - power shuttle, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - power shuttle

1шт.

24

N7043

TUBE

- forward clutch supply

1шт.

25

D50086

PLUG

- shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

- seal

2шт.
