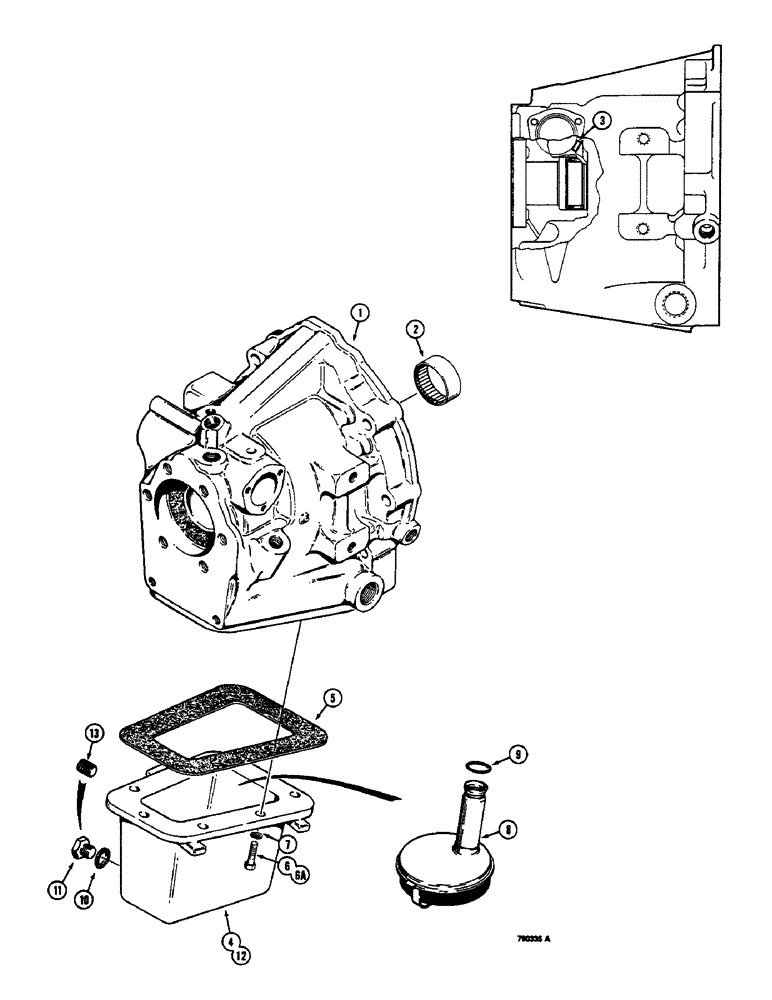

Запчасти Case 350B (096) - POWER SHUTTLE, HOUSING AND OIL PAN (03) - TRANSMISSION

R43949

TRANSMISSION

POWER SHUTTLE ASSEMBLY - complete parts list figures 96-104, Includes: Ref. 1 - 13

1шт.

329669A1

REMAN-TORQ CONV PS K

Remanufactured Transmission

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number

1шт.

D70650

HOUSING

HOUSING ASSEMBLY - power shuttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

NEEDLE BEARING - housing, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

PLUG - cap

1шт.

4

R29902

PAN

OIL PAN - cast, uses hex head drain plug (See refs. 10 and 11), if used

1шт.

5

R29956

GASKET,0.76mm Thk

GASKET - oil pan, may be replaced with ref. 5A

1шт.

5a

345-84

ADHESIVE

SEALANT - 3 fluid ounces (89 ML) in a tube, not shown, can be used in place of R29956 gasket

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Used with R29902 (Ref. 4) oil pan only, if used Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

6a

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

BOLT, , Used with N13577 (Ref. 12) oil pan only, if used Hex, 3/8"-16 x 7/8", G5, Full Thd

7шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

7шт.

8

D66455

FILTER SCREEN

SCREEN - sump, shuttle

1шт.

9

R29797

O-RING,0.07" Thk x 0.739" ID

"O" RING - screen

1шт.

D73701

PLUG

PLUG ASSEMBLY - drain, hex head, used with R29902 (Ref. 4) oil pan only, if used, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - drain plug

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex-head

1шт.

12

N13577

PAN

OIL PAN - welded, uses socket head drain plug (Ref. 13), if used

1шт.

13

221-841

PLUG

PLUG - hex socket head, 1/4" NPT, used with N13577 (Ref. 12) oil pan only, if used

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
