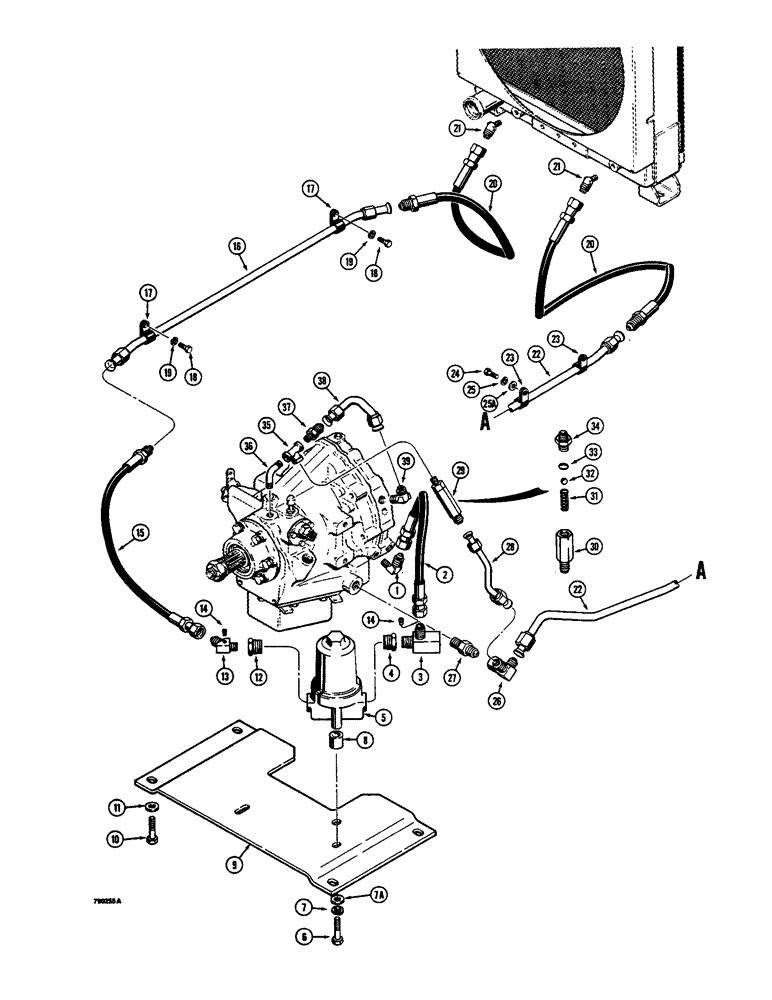

Запчасти Case 350B (092) - POWER SHUTTLE COOLING SYSTEM (03) - TRANSMISSION

1

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

- 90 degree, male

1шт.

2

D48532

HOSE ASSY.

HOSE - shuttle to oil filter, 13-3/16" (335 mm) long

1шт.

3

D48527

TEE

- special, at filter

1шт.

4

221-65

REDUCER,Hex, 1" x 3/4" NPT

- 1" x 3/4"

1шт.

5

D52050

FILTER CARTRIDGE

FILTER - oil, parts list figure 94

1шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

7a

95-8

WASHER,1/2"

flat 1/2"

2шт.

8

D48528

SPACER

- filter mounting

2шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

D48528

SPACER

- special

2шт.

12

221-65

REDUCER,Hex, 1" x 3/4" NPT

- 1" x 3/4"

1шт.

10

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

14

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.

15

D48531

HOSE ASSY.

HOSE - oil filter to radiator, 16" (406 mm) long

1шт.

16

R42015

TUBE

- from radiator, left-hand

1шт.

17

D34174

CLAMP,5/8", 1/2" Bolt

- left-hand tube

2шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

D48531

HOSE ASSY.

HOSE - at radiator, 16" (406 mm) long

2шт.

21

218-1100

ELBOW,45 Degree, 7/8"-14" NPTF x 3/8"-18, 37 Degree

- 45 degree

2шт.

22

R42129

TUBE

- from radiator, right-hand

1шт.

23

49771

CLAMP

- tube

1-2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1-2шт.

25

92-6

LOCK WASHER,3/8"

1-2шт.

25a

195-25

WASHER,3/8"

- flat, 3/8"

1-2шт.

26

D48529

ELBOW UNION

TEE - special, at power shuttle

1шт.

27

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

28

D48525

TUBE

- at relief valve

1шт.

29

D48540

VALVE POPPET

RELIEF VALVE ASSEMBLY - power shuttle, Includes: Ref. 30 - 34

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

31

S73472

SPRING

- relief valve

1шт.

32

211-212

BALL

- 7/16", grade 25, chrome alloy steel

1шт.

33

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- seat

1шт.

34

S73469

SEAT, VALVE

SEAT - spring

1шт.

35

221-423

TEE,3/8" NPT

- female, 3/8" NPT

1шт.

36

D48539

FITTING

TUBE - at shuttle, rear

1шт.

37

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADPATER - straight, male

1шт.

38

D48523

TUBE

- at shuttle, front

1шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree

1шт.
