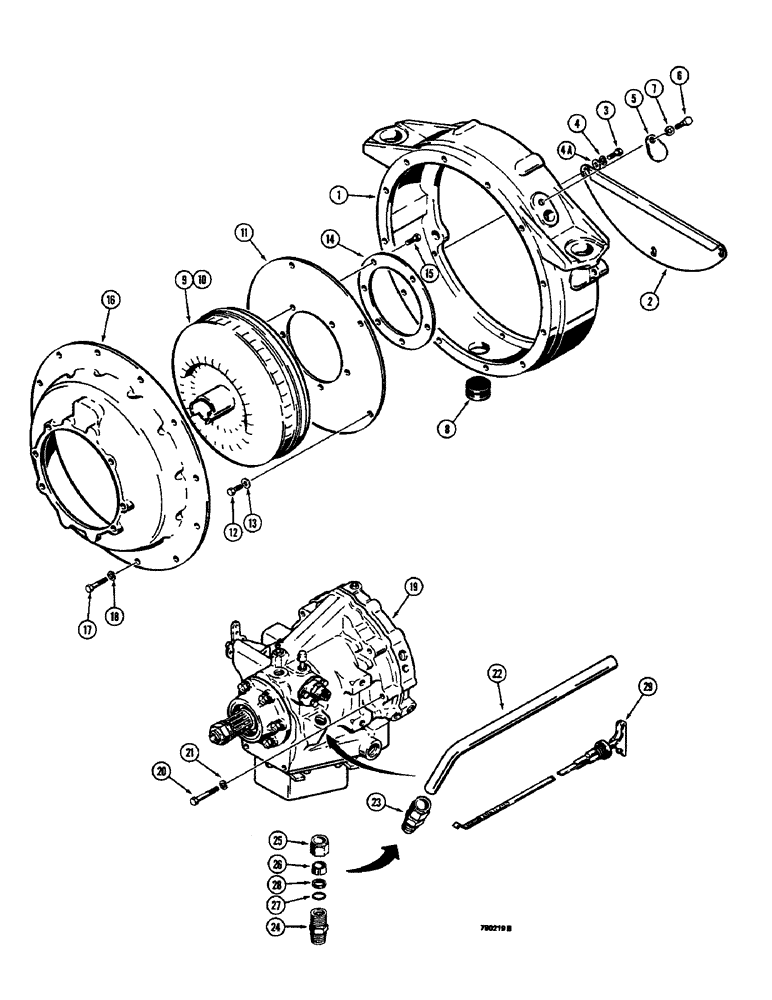

Запчасти Case 350B (090) - TORQUE CONVERTER AND POWER SHUTTLE MOUNTING (03) - TRANSMISSION

1

REF

INSTRUCTION

HOUSING - flywheel, see figure 38

1шт.

2

D36893

COVER

COVER - flywheel housing, lower

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4a

95-4

WASHER,1/4"

WASHER - flat, 1/4"

3шт.

5

A29068

COVER

COVER - flywheel, timing hole

1шт.

6

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

R24153

PLUG

PLUG - converter drain, special

1шт.

9

D81693

CONVERTER

TORQUE CONVERTER - loader models only

1шт.

9

103293A1R

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

9

103293A1C

CORE-TORQUE CONVERTR

Core Torque Converter, Return Part Number

1шт.

10

R41643

CONVERTER

TORQUE CONVERTER - dozer and drawbar models only

1шт.

11

A15670

PLATE

PLATE - converter drive

1шт.

12

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

BOLT - hex, self-locking, 5/16" - 18 NC x 5/8"

6шт.

13

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER - special

6шт.

14

D81592

PLATE

PLATE - converter reinforcement

1шт.

15

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT - hex head, self-locking, 3/8" - 24 NF x 1/2"

6шт.

16

D48445

HOUSING

HOUSING - torque converter

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

19

REF

INSTRUCTION

SHUTTLE ASSEMBLY - see figures 96-104 for correct assembly and components

1шт.

20

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

BOLT, Hex, 7/16"-14 x 3 1/4", G5

6шт.

21

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

6шт.

22

R43147

TUBE

SPARE PART TUBE - shuttle dipstick

1шт.

23

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

CONNECTOR ASSEMBLY - male, straight, dipstick tube, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - connector assembly

1шт.

25

222-3111

TUBE NUT,1"-12

NUT - connector assembly

1шт.

26

222-3105

SLEEVE,1" Tube

SLEEVE - nut

1шт.

27

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

O-RING - connector assembly

1шт.

28

D54295

RING

BACKUP RING - O-ring

1шт.

29

R43146

GAUGE

DIPSTICK - power shuttle

1шт.
