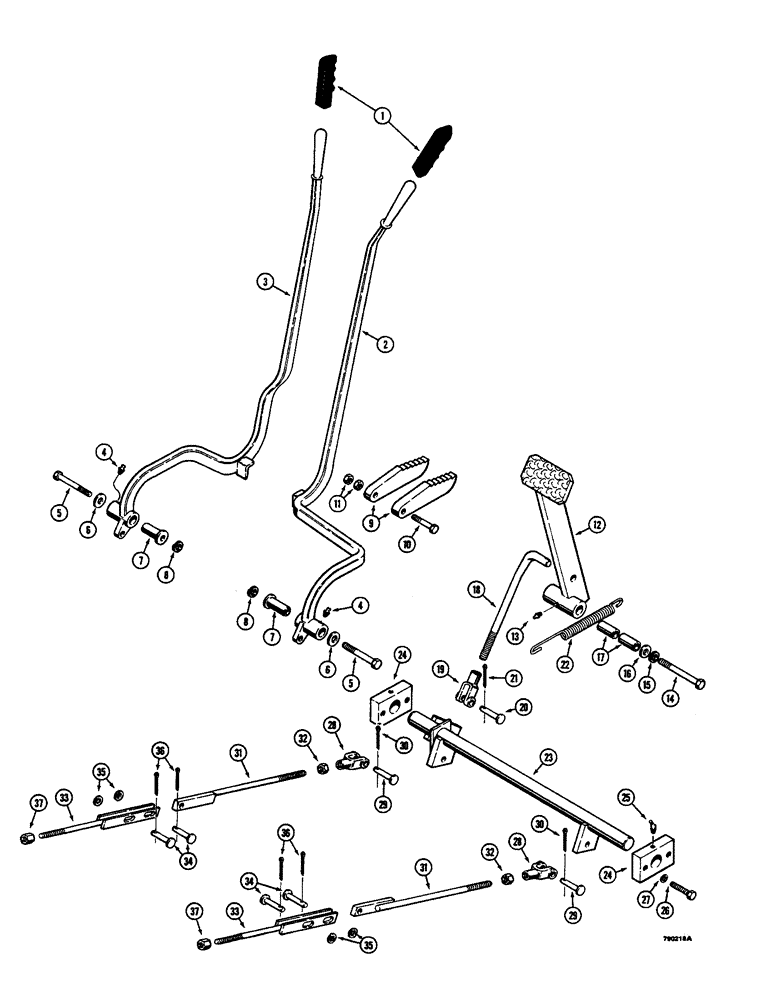

Запчасти Case 350B (088) - TRANSMISSION STEERING AND BRAKE CONTROLS (03) - TRANSMISSION

1

31400

CLAMP

GRIP - steering lever

2шт.

2

D33588

LEVER - steering, right-hand

1шт.

3

D33559

LEVER

- steering, left-hand

1шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

GREASE FITTING - straight, 1/4" drive type

2шт.

5

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

- hex head, 9/16" - 12 NC x 3-3/4"

2шт.

6

195-37

WASHER,9/16"

- flat, 9/16"

2шт.

7

86516614

COVER

- steering lever

2шт.

8

92-9

BEARING WASHER,9/16"

2шт.

9

33604

RATCHET

LOCK - parking brake

2шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

D48481

PEDAL - brake

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

14

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special

1шт.

17

11031

SPACER

BUSHING - brake pedal

2шт.

18

D49172

ROD

- brake pedal

1шт.

19

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - brake pedal rod, 1/2"

1шт.

20

141-56

CLEVIS PIN,1/2" x 1.360"

- 1/2" diameter x 1-3/8" long, plated

1шт.

21

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

22

R33370

SPRING

- return, brake pedal

1шт.

23

D48480

SHAFT

- brake linkage

1шт.

24

D25269

BLOCK

- support, brake shaft

2шт.

25

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, 1/8" NPT

2шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - brake shaft end, 3/8"

2шт.

29

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

30

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

2шт.

31

D33562

LINK

- brake shaft to steering lever

2шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

33

D33561

LINK

- steering, Serial Range: lever-transmission

2шт.

34

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

35

195-22

WASHER

- flat, 3/8"

4шт.

36

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

4шт.

37

11471

NUT

- steering rod, special

2шт.
