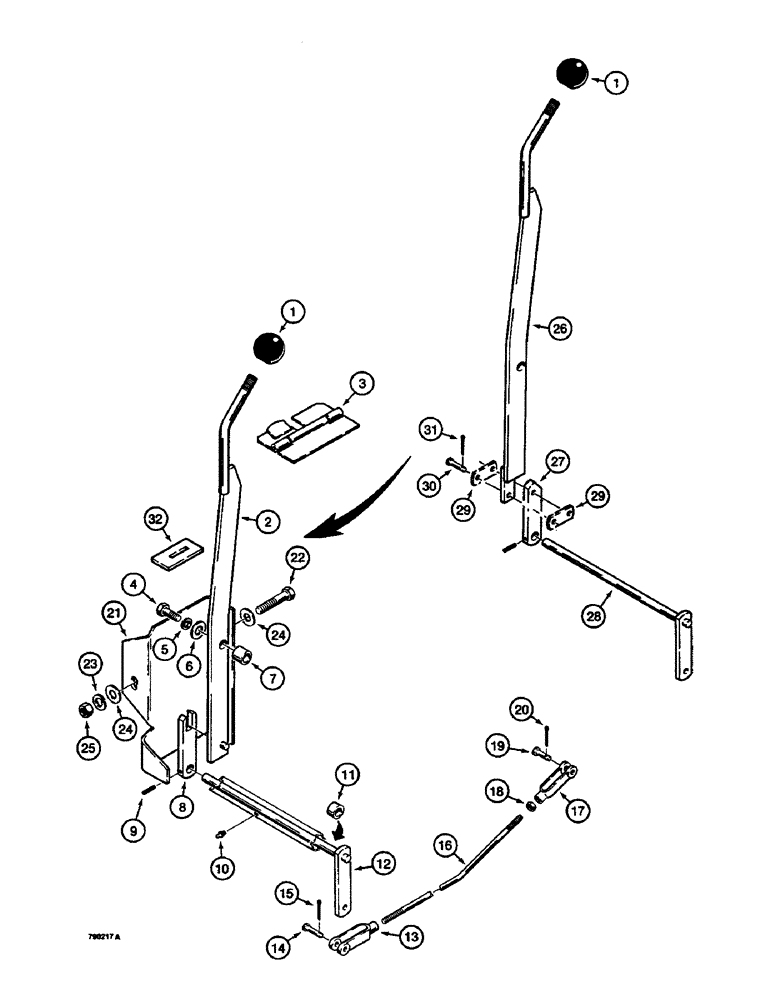

Запчасти Case 350B (086) - SHUTTLE CONTROL (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
D49996
KNOB
- control lever
1шт.
2
R42465
LEVER
- shuttle control, used with refs. 8 and 12, if used
1шт.
3
R42646
HINGE - safety lock, welded to seat and tank frame
1шт.
4
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
1шт.
5
92-6
LOCK WASHER,3/8"
1шт.
6
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
7
T34907
SPACER
- lever
1шт.
8
D48450
LINK
- shuttle control, slotted, used with refs. 2 and 12, if used
1шт.
9
138-2067
PIN,3/16" x 1", Coiled
1шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
1шт.
11
D51323
BUSHING
- shaft
2шт.
12
D48474
SHAFT
- shuttle control, used with refs. 2 and 8, if used
1шт.
13
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - shuttle control rod, rear, 5/16"
1шт.
14
141-53
CLEVIS PIN,5/16" x .940"
plated 5/16" x .940"
1шт.
15
132-26
COTTER PIN
PIN, Split (Cotter), 3/32" x 3/4"
1шт.
16
R42906
ROD
- connecting, shuttle control
1шт.
17
R42896
ROD
YOKE - shuttle control rod, front, 5/16", special
1шт.
18
25-115
NUT,5/16"-24, G5
- hex, 5/16"-24 NF
1шт.
19
141-52
CLEVIS PIN,1/4" x .770"
- 1/4", plated
1шт.
20
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
21
D52499
GUARD - shuttle control
1шт.
22
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
1шт.
23
92-8
LOCK WASHER,1/2"
1шт.
24
195-33
WASHER,1/2"
- flat, 1/2"
2шт.
25
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
1шт.
26
R46140
LEVER - shuttle control, used with refs. 27-31, if used
1шт.
27
R46144
LINK - lower, shuttle control, used with ref. 26 lever and refs. 28-31, if used
1шт.
28
R46143
SHAFT - shuttle control, used with refs. 26, 27 and 29-31, if used
1шт.
29
R46145
LINK - upper, shuttle control, used with refs. 26-28, 30 and 31, if used
2шт.
30
141-53
CLEVIS PIN,5/16" x .940"
plated, if used 5/16" x .940"
2шт.
31
132-26
COTTER PIN
PIN, Split (Cotter), 3/32" x 3/4", if used
2шт.
32
R44355
COVER
- seat and tank frame, shuttle control lever
1шт.
Выбрано товаров: 32
