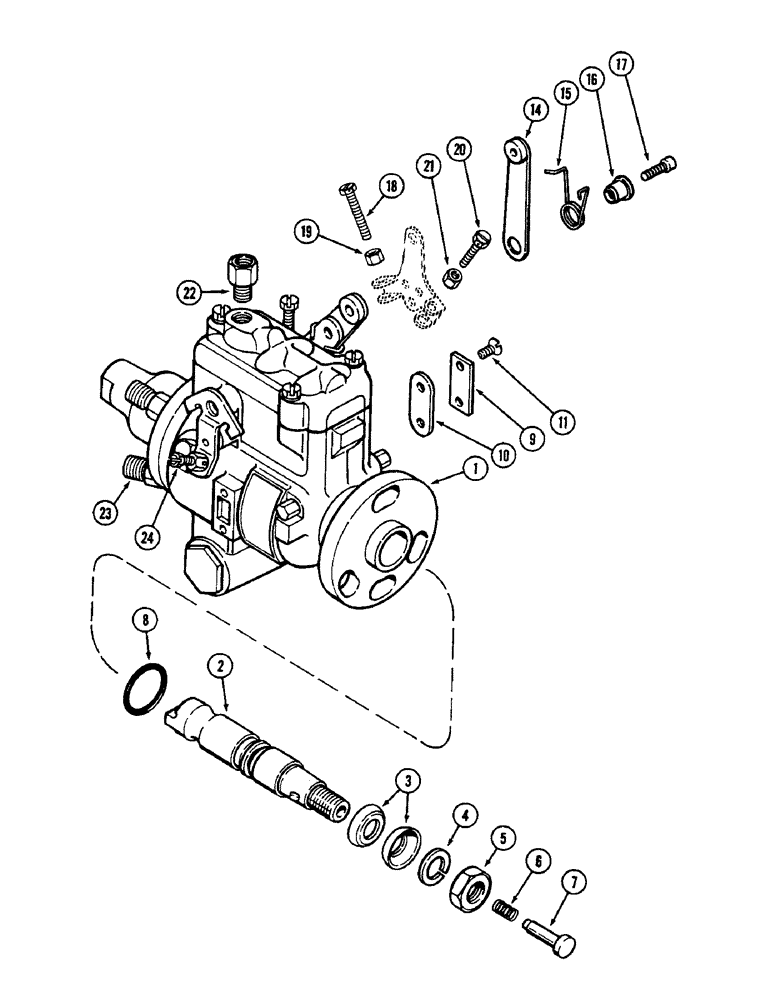

Запчасти Case 350B (058) - FUEL INJECTION PUMP (02) - FUEL SYSTEM

1

A154566

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, Includes: Ref. 2 - 24

1шт.

2

A44710

SHAFT

ASSEMBLY - pump drive

1шт.

3

R14711

SEAL

- pump shaft

2шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

25-119

NUT,9/16"-18, G5

- hex, 9/16" NF

1шт.

6

G48502

SPRING

- thrust bumper, 1-3/16" free length (30 mm)

1шт.

7

A44653

PLUNGER

- thrust, pump drive shaft

1шт.

8

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube (O-ring)

1шт.

9

73452

COVER

- timing hole

1шт.

10

73453

GASKET

- timing hole cover

1шт.

11

A47591

SCREW

- timing hole cover

2шт.

14

G45338

ARM

LEVER - throttle

1шт.

15

G48505

SPRING

- throttle lever

1шт.

16

G49621

RETAINER

- throttle lever spring

1шт.

17

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - retainer

1шт.

18

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- high idle adjustment No. 1-32 x 1-3/4"

1шт.

19

51200274

NUT

- lock, high idle adjustment screw No. 10-32 hex

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - low idle adjustment (Reference no. 73649)

1шт.

21

51200274

NUT

- lock, low idle adjustment screw

1шт.

2

A47592

ROD, CONNECTING

CONNECTOR - return line

1шт.

23

A47593

CONNECTOR, ELEC

CONNECTOR - fuel lines

4шт.

24

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- lock, fuel shut-off cable

1шт.
