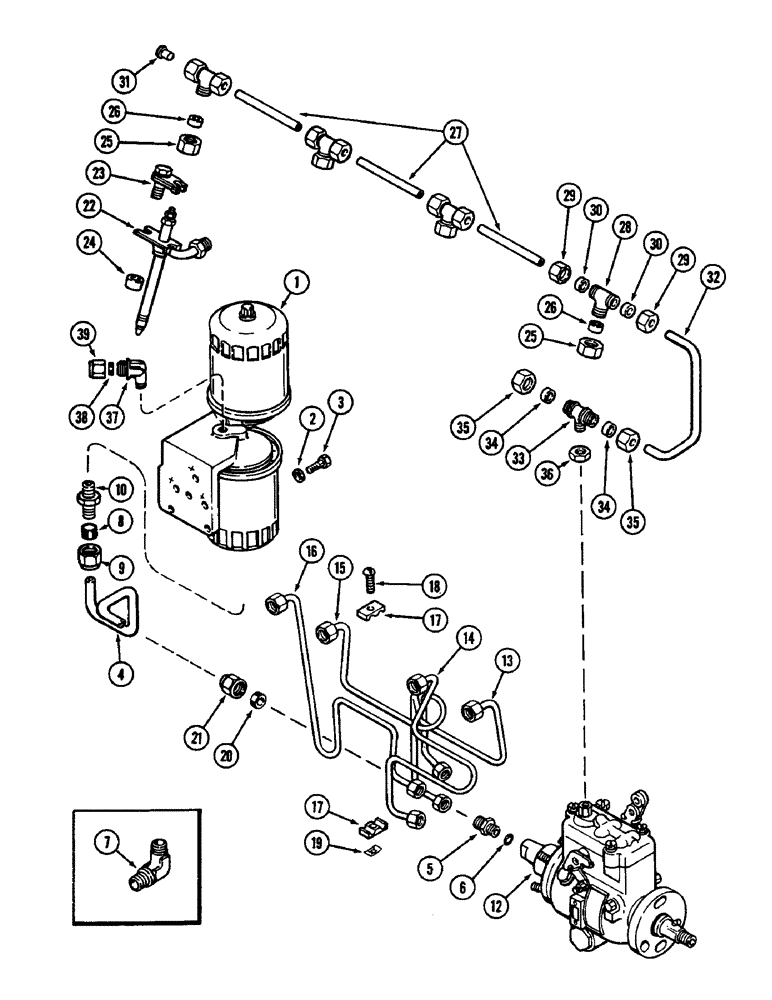

Запчасти Case 350B (052) - FUEL INJECTION AND FILTER SYSTEM, 188 DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (See figure 54)

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

A154898

TUBE

LINE - fuel filter to injection pump

1шт.

5

A51986

FITTING

- injection pump inlet

1шт.

7

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter outlet (If equipped), Includes: Ref. 8 and 9

1шт.

8

222-103

SLEEVE,5/16" Tube

(8 mm) 5/16" Tube

1шт.

9

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube (8 mm)

1шт.

10

222-4025

HYD CONNECTOR,9/16"-24 x 1/4" NPTF

CONNECTOR - filter outlet, 5/16 x 1/4" PT (If equipped)

1шт.

12

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 58)

1шт.

13

A153358

TUBE

ASSEMBLY - injection pump to No. 1 cylinder

1шт.

14

A153359

TUBE

ASSEMBLY - injection pump to No. 2 cylinder

1шт.

15

A153360

TUBE

ASSEMBLY - injection pump to No. 3 cylinder

1шт.

16

A153361

TUBE

ASSEMBLY - injection pump to No. 4 cylinder

1шт.

17

A58709

BRACKET

CLAMP - fuel injection lines

4шт.

18

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, round head machine, No. 10-24 x 1"

3шт.

19

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - No. 10 Tinnerman

3шт.

20

222-103

SLEEVE,5/16" Tube

(8 mm) 5/16" Tube

1шт.

21

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube (8 mm)

1шт.

22

REF

INSTRUCTION

NOZZLE ASSEMBLY - injector (See figure 54)

4шт.

23

A37837

CLAMP

ASSEMBLY - injector nozzle

4шт.

24

A37839

SPACER

- nozzle clamp

4шт.

25

A58961

NUT

- tee to injector nozzle

4шт.

26

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: nut-tee

4шт.

27

A38644

TUBE

- fuel leak-off

3шт.

28

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle and leak-off junction

4шт.

29

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube (6 mm)

8шт.

30

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

8шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - tee (Rear)

1шт.

32

A142906

TUBE

- fuel leak-off (To pump)

1шт.

33

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSEMBLY - fuel leak-off (One way valve), Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

2шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6 mm)

2шт.

36

A38160

LOCK NUT

- sealing (At pump)

1шт.

37

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter inlet, Includes: Ref. 38 and 39

1шт.

38

222-103

SLEEVE,5/16" Tube

(8 mm) 5/16" Tube

1шт.

39

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube (8 mm)

1шт.

6

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, fitting, 3/8 x 9/16 x 1/16" (10 x 14 x 2 mm)

1шт.
