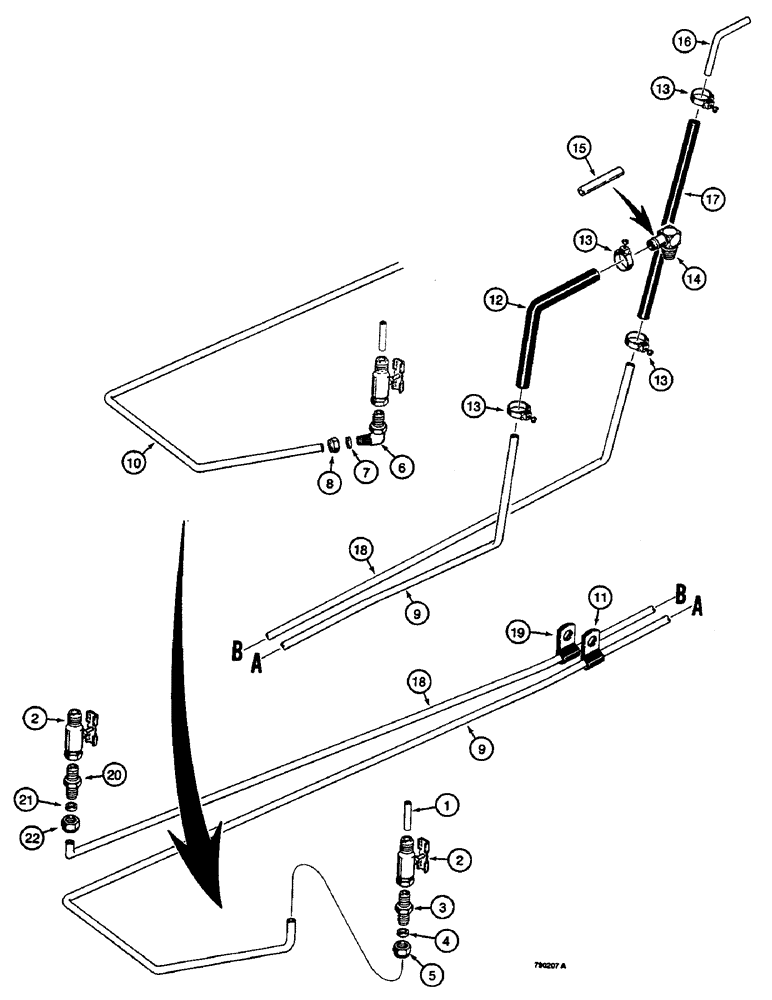

Запчасти Case 350B (050) - FUEL LINES (02) - FUEL SYSTEM

1

R43073

TUBE

- at fuel tank

1шт.

2

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - fuel lines

2шт.

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, used with R42159 supply tube (Ref. 9), if used, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

4

222-103

SLEEVE,5/16" Tube

- Adapter 5/16" Tube

1шт.

5

222-113

TUBE NUT,9/16"-24

NUT - adapter

1шт.

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degrees, used with R44258 supply tube (Ref. 10), if used, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

7

222-103

SLEEVE,5/16" Tube

- Elbow 5/16" Tube

1шт.

8

222-113

TUBE NUT,9/16"-24

NUT - elbow

1шт.

9

R42159

TUBE

- fuel supply, with bend at fuel tank, no longer used, replace with R44258 tube (Ref. 10) and 222-45 elbow (Refs. 6-8)

1шт.

10

R44258

FUEL TUBE,0.312" OD

TUBE - fuel supply, without bend at fuel tank, uses elbow (Refs. 6-8)

1шт.

11

51200191

CLAMP

- fuel supply tube, lower

1шт.

12

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

Fuel Supply, Cut From Bulk Hose, See Parts Substitution List For Bulk Hose Options 0.31" ID x 9.00", SAE 30R1

1шт.

13

214-300

CLAMP

- adjustable, fuel hoses

4шт.

14

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- barb fitting, at fuel filter, if used

1шт.

15

R44238

TUBE - fuel supply, at fuel filter, if used

1шт.

16

R42158

TUBE - fuel return, front

1шт.

17

D51735

FUEL HOSE

HOSE - fuel return, 1/4" (6 mm) ID x 9" (229 mm) long, cut from D52518, see below

1шт.

18

R42157

TUBE

- fuel return, rear

1шт.

19

S79579

CLAMP

- fuel return tube, upper

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, fuel return, at shutoff valve, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

21

222-102

SLEEVE,1/4" Tube

Adapter 1/4" Tube

1шт.

22

87017024

TUBE NUT,1/2"-24

NUT - adapter

1шт.

D52518

INTAKE AIR HOSE,0.25" ID x 17.50", SAE 30R1 or SAE 30R3

0.25" ID x 17.50", SAE 30R1 or SAE 30R3

1шт.
