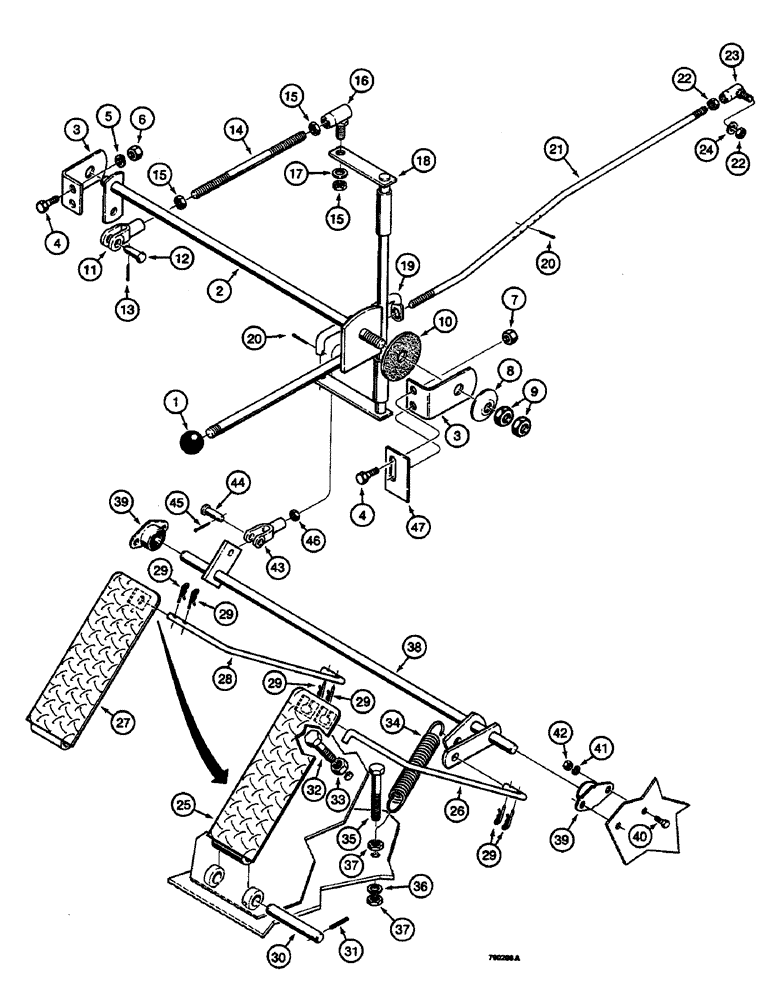

Запчасти Case 350B (048) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

D49996

KNOB

- hand throttle lever

1шт.

2

R43204

LEVER AND SHAFT - hand throttle

1шт.

3

R41776

BRACKET - hand throttle

2шт.

4

113-279

BOLT

- hex head, 3/8" - 16 NC x 3/4", plated

4шт.

5

92-6

LOCK WASHER,3/8"

left-hand bracket only 3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, left-hand bracket only

2шт.

7

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, right-hand bracket throttle lever stop

2шт.

8

R14771

WASHER

BELLEVILLE SPRING - throttle shaft

1шт.

9

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

2шт.

10

R15071

DISC

- friction

1шт.

11

H44198

YOKE

CLEVIS - throttle rod, 5/16" - 24 NF

1шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

13

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

1шт.

14

R41931

ROD - hand throttle

1шт.

15

25-115

NUT,5/16"-24, G5

JAM NUT - hex, 5/16"-24 NF

3шт.

16

A19105

BALL JOINT

- throttle rod, adjustable

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER - pivot, part of hydraulic tank weldment

1шт.

19

D26783

LINK

- hand throttle

1шт.

20

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

2шт.

21

R42475

ROD

- throttle

1шт.

22

25-114

NUT,1/4"-28, G5

JAM NUT - hex, 1/4" - 28 NF

2шт.

23

A10329

BALL JOINT,1/4" - 28 x 1"

- throttle, adjustable

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

R40681

PEDAL ASSY.

PEDAL - foot throttle, no longer used, order D48465 pedal, D51753 rod, and two 136-157 cotter pins

1шт.

26

R42476

ROD - use with ref. 25 pedal, uses two hair pins (Ref. 29), if used

1шт.

27

D48465

PEDAL

- foot throttle, use with ref. 28 rod and four cotter pins

1шт.

28

D51753

ROD

- use with ref. 27 pedal, uses four hair pins (Ref. 29), if used

1шт.

29

136-157

COTTER PIN,Int, 9/64" x .054"

HAIR PIN - foot throttle

2-4шт.

30

71044

LOCK

SHAFT - pedal

1шт.

31

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, 5/32" x 1", Type E

1шт.

32

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

33

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

1шт.

34

R36912

SPRING

- throttle return

1шт.

35

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

38

R42472

SHAFT - foot throttle

1шт.

39

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING - pivot shaft

2шт.

40

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

42

25-104

NUT,1/4"-20, G5

4шт.

43

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - pivot shaft, 1/4" - 28 NF

1шт.

44

141-2

CLEVIS PIN,1/4" x .770"

- 1/4", plated

1шт.

45

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

46

25-114

NUT,1/4"-28, G5

JAM NUT - hex, 1/4" - 28 NF

1шт.

47

R44005

STOP - hand throttle lever

1шт.
