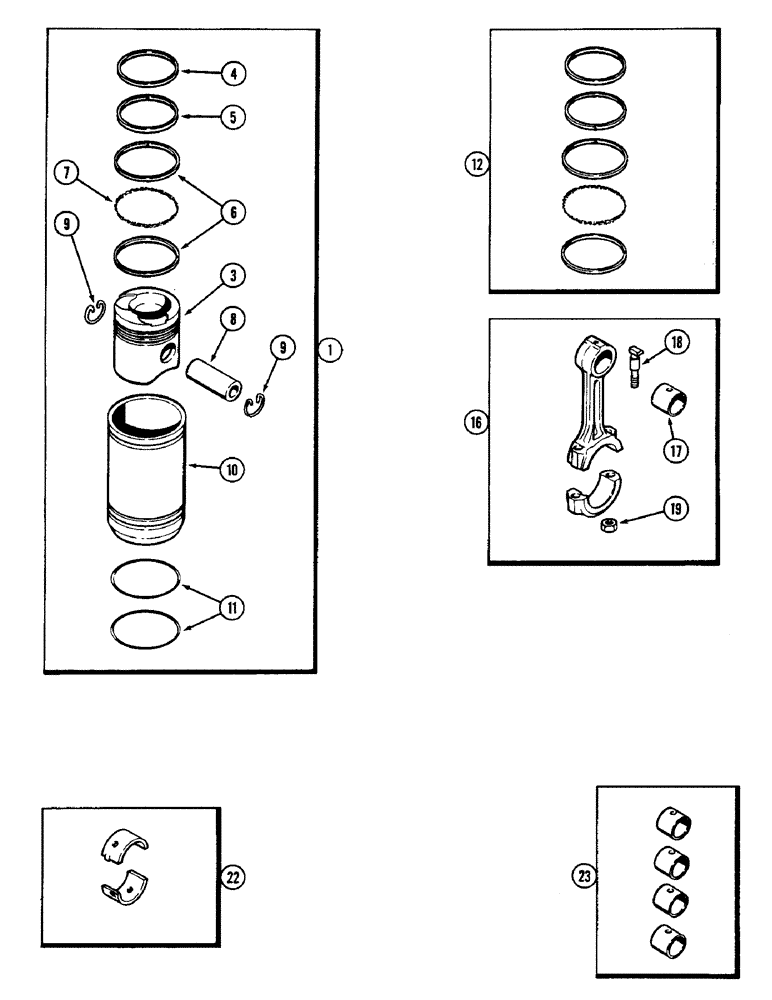

Запчасти Case 350B (040) - PISTONS, 188 DIESEL ENGINE (01) - ENGINE

1

A151995

SLEEVE ASSY

PISTON ASSEMBLY - engine (Set of 1), Includes: Ref. 3 - 11

4шт.

3

A38424

PISTON

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression 1st groove (Order ref. 12)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 12)

1шт.

6

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order ref. 12)

2шт.

7

NSS

NOT SOLD SEPARAT

SPACER - oil control rail (Order ref. 12)

1шт.

8

A35770

PISTON PIN,31.75mm OD x 80.44mm L

PIN - piston

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

10

A39006

SLEEVE

- piston (Cylinder liner)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

- sleeve

2шт.

12

A151857

PISTON RING SET

RING SET - piston re-ring (Set of 1)

4шт.

16

A136931

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 23), connecting rods

1шт.

18

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

19

A51904

NUT

NUT - connecting rod bolt

2шт.

22

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

INSERT - connecting rod bearing, standard (Set of 2)

4шт.

22

A46051

BEARING LINER

INSERT - connecting rod bearing, -0.002" (0.06 mm) (Set of 2)

4шт.

22

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

INSERT - connecting rod bearing, -0.010" (0.26 mm) (Set of 2)

4шт.

22

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

INSERT - connecting rod bearing, -0.020" (0.52 mm) (Set of 2)

4шт.

22

A46054

BEARING LINER

INSERT - connecting rod bearing, -0.030" (0.78 mm) (Set of 2)

4шт.

23

A44083

KIT

BUSHING KIT - piston pin (Set of 4), connecting rods

1шт.
