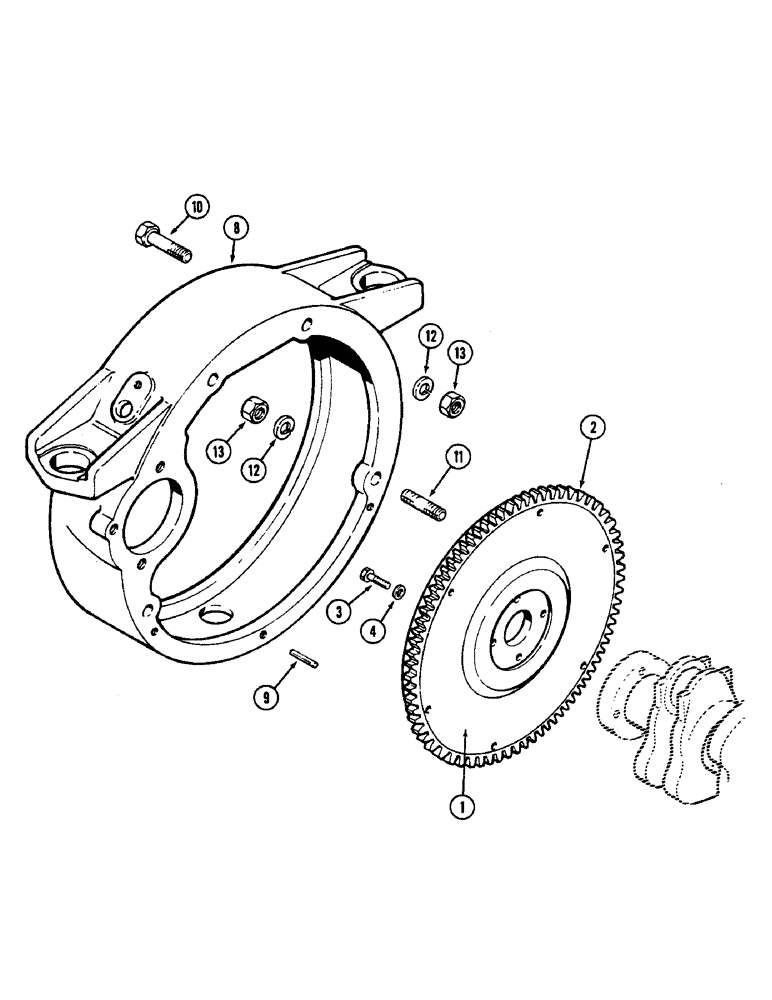

Запчасти Case 350B (038) - FLYWHEEL AND HOUSING, 188 DIESEL ENGINE (01) - ENGINE

1

A38915

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring, starter

1шт.

3

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel to crankshaft, hex, 7/16 NF x 1-1/8"

4шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt

4шт.

8

A154571

HOUSING - flywheel

1шт.

9

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Housing locating 1/8" x 1 1/4", Slotted

1шт.

10

A30135

BOLT

BOLT - housing to engine, hex, 5/8 NF x 2-1/4"

2шт.

11

A29363

STUD

- housing to engine, 5/8 NF x 2-1/4"

2шт.

12

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external Shakeproof, 5/8"

4шт.

13

129-127

NUT,5/8"-18, G5

4шт.
