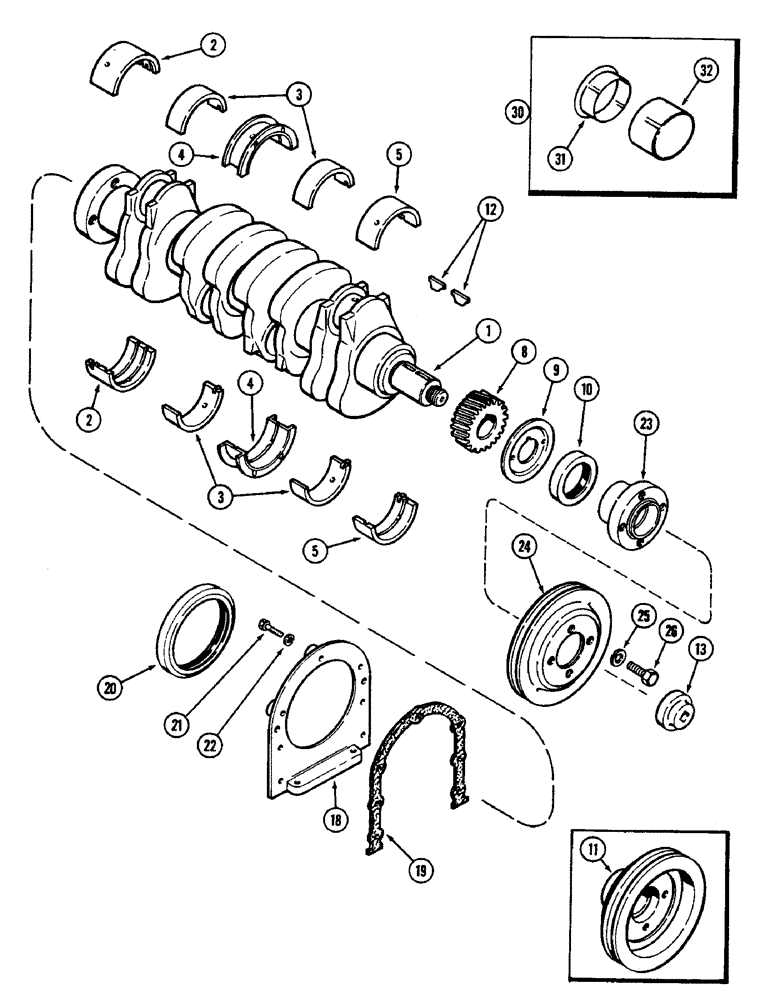

Запчасти Case 350B (036) - CRANKSHAFT, 188 DIESEL ENGINE (01) - ENGINE

1

A151015

CRANKSHAFT

- engine

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT - main bearing, rear, standard (Set of 2)

1шт.

2

A36496

LINING

INSERT - main bearing, rear, -0.002" (0.06 mm) (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT - main bearing, rear, -0.010" (0.26 mm) (Set of 2)

1шт.

2

A36498

KIT

INSERT - main bearing, rear, -0.020" (0.52 mm) (Set of 2)

1шт.

2

A36499

BEARING LINER

INSERT - main bearing, rear, -0.030" (0.78 mm) (Set of 2)

1шт.

3

A36485

LINING

INSERT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A36486

LINING

INSERT - main bearing, intermediate, -0.002" (0.06 mm) (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSERT - main bearing, intermediate, -0,010" (0.26 mm) (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSERT - main bearing, intermediate, -0.020" (0.52 mm) (Set of 2)

2шт.

3

A36489

LINING

INSERT - main bearing, intermediate, -0.030" (0.78 mm) (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT - main bearing, center, standard (Set of 2)

1шт.

4

A36491

LINING

INSERT - main bearing, center, -0.002" (0.06 mm) (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT - main bearing, center, -0.010" (0.26 mm) (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT - main bearing, center, -0.020" (0.52 mm) (Set of 2)

1шт.

4

A36494

LINING

INSERT - main bearing, center, -0.030" (0.78 mm) (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT - main bearing, front, standard (Set of 2)

1шт.

5

A36481

LINING

INSERT - main bearing, front, -0.002" (0.06 mm) (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT - main bearing, front, -0.010" (0.26 mm) (Set of 2)

1шт.

5

A36483

LINING

INSERT - main bearing, front, -0.020" (0.52 mm) (Set of 2)

1шт.

5

A36484

LINING

INSERT - main bearing, front, -0.030" (0.78 mm) (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front

1шт.

11

A156354

PULLEY

- water pump drive (Replaces A138244) (If equipped)

1шт.

12

A39132

KEY

- pulley and gear

1шт.

13

A166176

NUT

- pulley retaining (Replaces A35673)

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear

1шт.

Ref. 20A - A49851 Wear Sleeve for this seal

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer, hex, 1/4 NC x 3/4"

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer, hex, 1/4 NC x 1" NC

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

23

A156746

HUB

- pulley

1шт.

24

A166076

PULLEY

- water pump drive

1шт.

25

92-7

LOCK WASHER,7/16"

4шт.

26

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

30

A155893

SLEEVE

KIT - wear, front oil seal

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - wear (Reference no. A155894), kit

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation (Reference no. A155895), wear sleeve kit

1шт.
