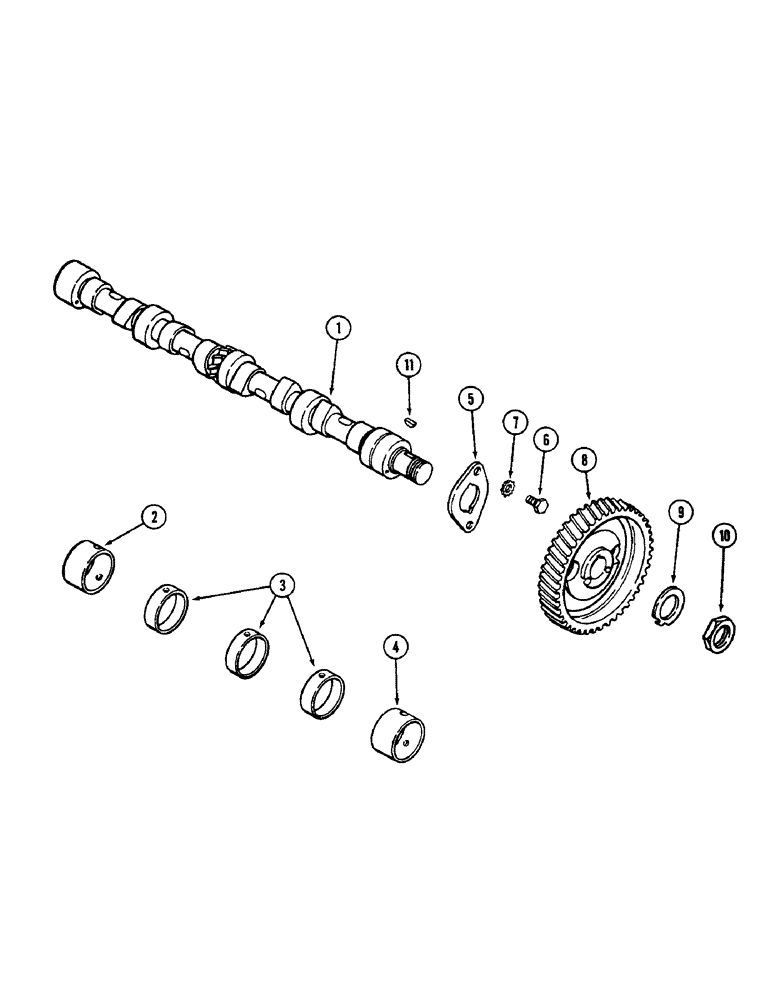

Запчасти Case 350B (032) - CAMSHAFT, 188 DIESEL ENGINE (01) - ENGINE

1

A153521

CAMSHAFT

- engine (Replaces A39013)

1шт.

2

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

- rear, 1" wide (25 mm) (With two oil holes)

1шт.

3

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING - intermediate, 1/2" wide (13 mm) (With one oil hole)

3шт.

4

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

- front, 1-1/4" wide (32 mm) (With two oil holes)

1шт.

5

A29290

PLATE

- thrust, camshaft

1шт.

6

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate, special, 5/16 NC x 1/2"

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

A38931

GEAR

- camshaft

1шт.

9

A29438

LOCK NUT

WASHER - tab, gear nut lock

1шт.

10

A30063

NUT

- gear retainer, hex, 1-18 inch

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

KEY - gear to camshaft (#7 Woodruff)

1шт.
