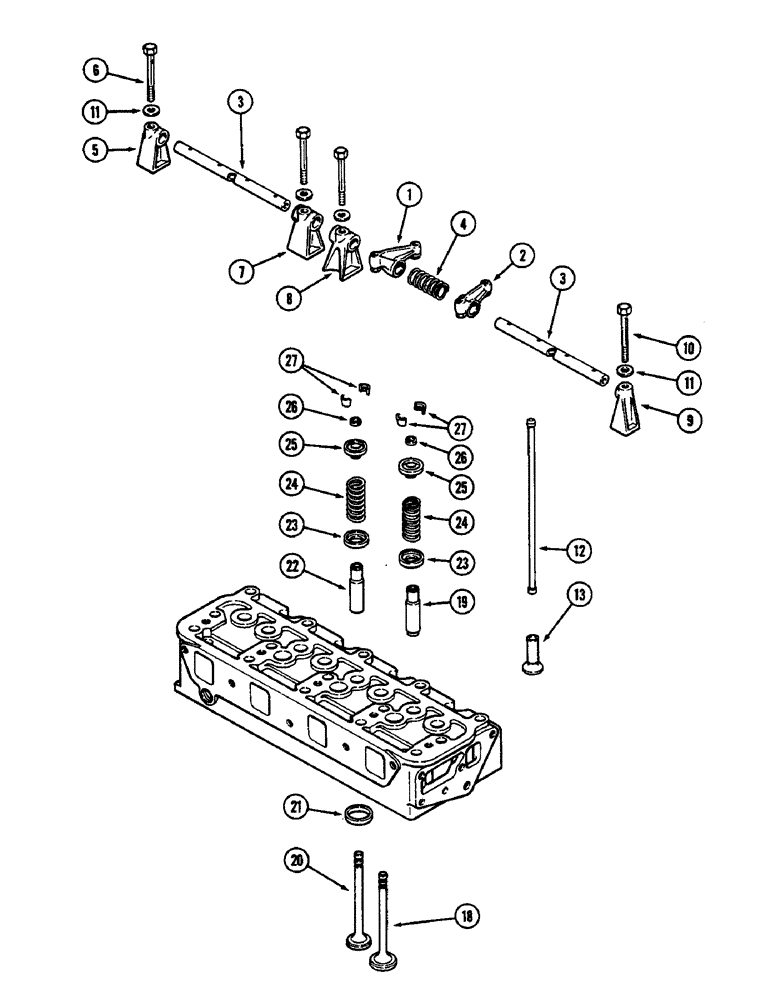

Запчасти Case 350B (030) - VALVE MECHANISM, 188 DIESEL ENGINE (01) - ENGINE

1

A51149

ARM

ASSEMBLY - rocker, left hand, with adjusting screw

4шт.

2

A51148

ARM

ASSEMBLY - rocker, right hand, with adjusting screw

4шт.

3

A38181

SHAFT

- rocker arm

2шт.

4

G48501

SPRING

- rocker arm shaft

4шт.

5

A36615

BRACKET

- rear, rocker arm shaft

1шт.

6

G49067

BOLT

- rear bracket, with drilled oil passage

1шт.

7

G2101

BRACKET

- center

1шт.

8

A51084

BRACKET

- intermediate

2шт.

9

G2100

BRACKET

- front

1шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- bracket, hex, 3/8 NC x 2-1/2"

4шт.

11

A30058

WASHER

- bracket bolts

5шт.

12

G47079

ROD

- push

8шт.

13

G47077

TAPPET

LIFTER - push rod

8шт.

18

A41726

VALVE

- intake (Set of 4)

1шт.

19

G2068

GUIDE

- intake valve

4шт.

20

A41727

VALVE

- exhaust (Set of 4)

1шт.

21

A39268

INSERT

- exhaust valve seat (Replaces G47078)

4шт.

22

G2069

GUIDE

- exhaust valve

4шт.

23

G49065

SEAT

- valve spring

8шт.

24

A30025

SPRING

- valves

8шт.

25

G11717

RETAINER

- valve spring

4шт.

26

G46851

SEAL

- valve stem (Rubber)

8шт.

27

A30004

RETAINER

LOCK - valve keepers

16шт.
