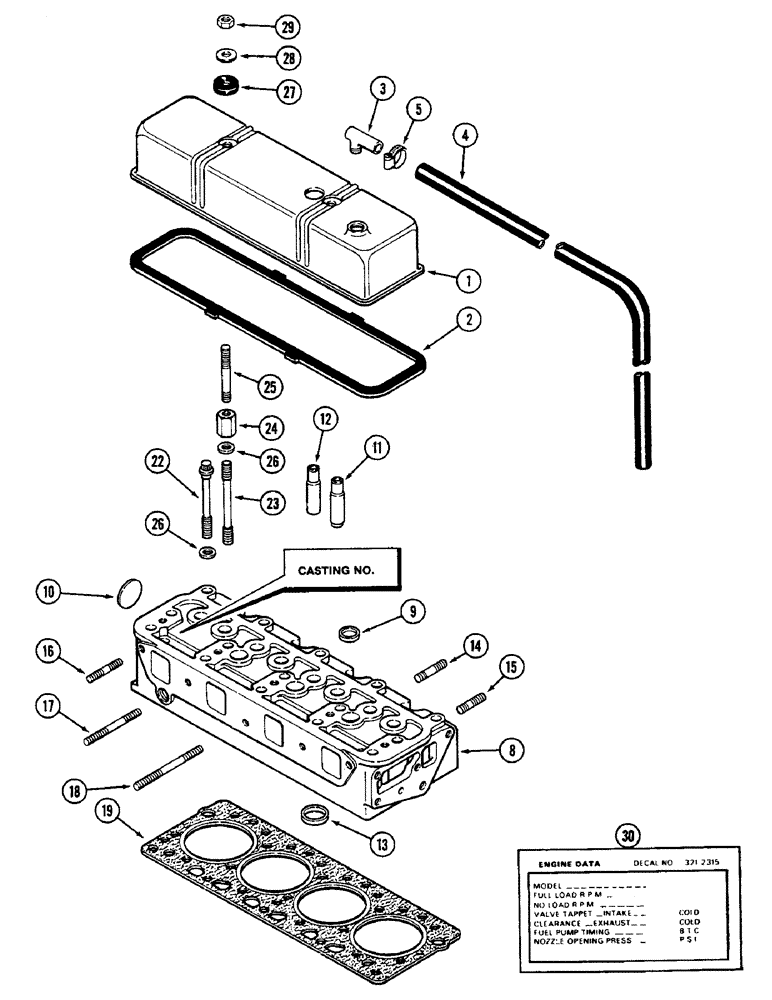

Запчасти Case 350B (028) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (01) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cover to cylinder head

1шт.

3

A9155

90 ELBOW

- breather

1шт.

4

A39570

HOSE

- breather hose

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - breather hose, 9/16 to 1-1/16" (14 to 27 mm)

1шт.

8

A166029

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting no. A155925) (With drilled push rod holes) (See figure 24 for water pump body) (Order A166029 for service), Includes: Ref. 9 - 18

1шт.

8

A153261

CYLINDER BLOCK

HEAD ASSEMBLY - cylinder (Casting no. A150384) (With cast push rod holes) (See figure 24 for water pump body) (Order A166029 for service), Includes: Ref. 9 - 18

1шт.

9

41-1016

PLUG,Cup, 1"

- top, 1" cup type (25 mm)

3шт.

10

41-1028

PLUG,Cup, 1 3/4"

- rear, 1-3/4" cup type (44 mm)

1шт.

11

G2069

GUIDE

- exhaust valves

4шт.

12

G2068

GUIDE

- intake valves

4шт.

13

G11986

KIT

INSERT - exhaust valve seat

1шт.

14

A140924

STUD

- exhaust manifold clamps, 3/8 NC x 2-7/16" (Replaces A39129)

3шт.

15

A29431

STUD

- exhaust manifold, end holes, 3/8 NC x 1-3/4"

2шт.

16

A140924

STUD

- intake manifold, end holes, 3/8 NC x 2-7/16"

2шт.

17

A153248

STUD

- intake manifold, intermediate holes, 3/8 NC x 4-13/16"

2шт.

18

A51500

STUD

- intake manifold, center hole, 3/8 NC x 5-5/16"

1шт.

19

REF

INSTRUCTION

GASKET - cylinder head to block (See figure 44)

1шт.

22

A39047

12 PT SCREW

BOLT - cylinder head, 12 point head, 1/2 NC x 3-1/2"

4шт.

22

A39048

12 PT SCREW

BOLT - cylinder head, 12 point head, 1/2 NC x 5-1/8"

11шт.

22

A39049

12 PT SCREW

BOLT - cylinder head, 12 point head, 1/2 NC x 5-5/8"

2шт.

23

A36902

STUD

- cylinder head, 1/2 NC x 5-5/8"

2шт.

24

A51114

NUT

- head studs, 1/2 NC and 3/8" NC

2шт.

25

A51271

STUD

- cylinder head cover, 3/8 NC x 3-3/4"

2шт.

26

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- cylinder head bolt

19шт.

27

A142098

GROMMET

- cover (Rubber)

2шт.

28

195-137

WASHER,13/32" x 1 1/8" x .180"

- cover nut, 13/32 x 1-1/8 x 3/16" (10 x 29 x 5 mm)

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

321-5840

DECAL - engine data

1шт.
