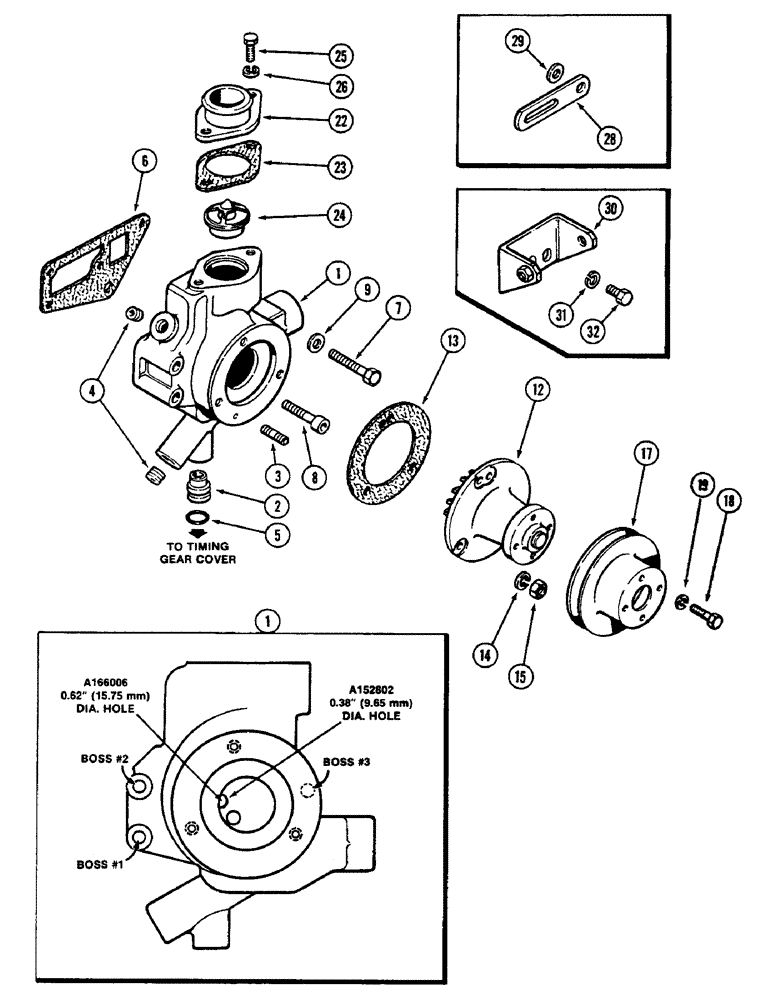

Запчасти Case 350B (024) - WATER PUMP, 188 DIESEL ENGINE (01) - ENGINE

1

A166006

BODY

BODY ASSEMBLY - water pump (Used with A155925 cast numbered cylinder head, see figure 28), Includes: Ref. 2 - 4

1шт.

1

A152802

PUMP

BODY ASSEMBLY - water pump (Used with A150834 cast numbered cylinder head, see figure 28), Includes: Ref. 2 - 4

1шт.

2

A152715

COUPLING

FITTING - body to timing gear cover

1шт.

3

A29433

STUD

STUD - water pump to body, 3/8 NC x 1"

3шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - socket head, 3/8" PT

2шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - fitting

1шт.

6

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, , Body to cylinder head (Boss no. 1) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, , Body to cylinder head (Boss 3) Hex, 3/8"-16 x 3", G5

1шт.

7

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT, (Boss no. 2) Hex, 3/8"-16 x 3 1/2", G5

1шт.

8

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - body to cylinder head (Inside body) socket head, 3/8 NC x 2"

1шт.

9

A50820

WASHER

WASHER - mounting bolt

3шт.

12

A146584

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 13

1шт.

12

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

12

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

12

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

12

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

12

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

13

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

14

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

17

G11339

PULLEY

PULLEY - fan drive

1шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Pulley Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

G2144

FITTING

HOUSING - thermostat

1шт.

23

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

24

A57641

THERMOSTAT

THERMOSTAT - engine coolant, 180 degrees F (82 degrees C)

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Housing to body Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

28

R29597

STRAP

STRAP - alternator adjusting (To water pump boss no. 2)

1шт.

29

195-525

WASHER,3/8", SAE

WASHER - spacer (Boss no. 2) 3/8 x 13/16 x 1/16" (10 x 21 x 2 mm)

2шт.

30

R43734

BRACKET

BRACKET - alternator mounting

1шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.
