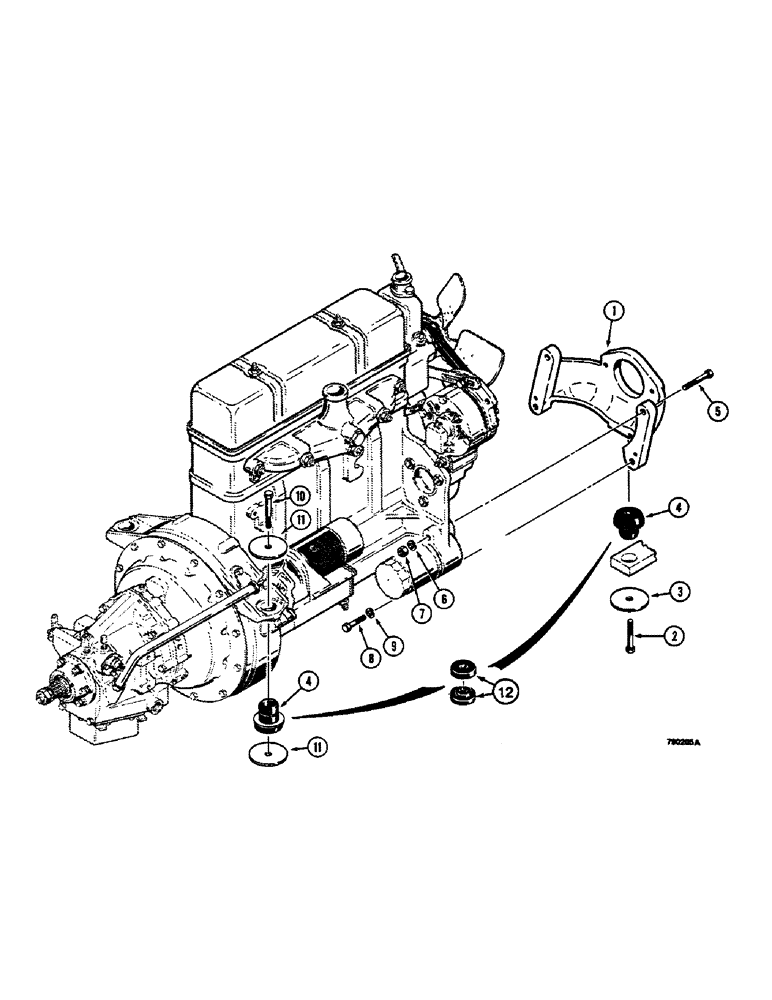

Запчасти Case 350B (022) - ENGINE MOUNTING (01) - ENGINE

1

D120867

SUPPORT ASSY.

SUPPORT - engine, front

1шт.

2

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Use with Loctite Hex, 5/8"-11 x 3", G5

1шт.

3

R43666

SPACER

WASHER - flat, hardened, 5/8"

1шт.

4

R44447

MOUNTING PARTS

INSULATOR - rubber, engine mounting, one-piece, no longer used, replace with two each of ref. 12

3шт.

5

R33936

BOLT

- hex head, 5/8" - 11 NC x 3"

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

25-1010

NUT,5/8"-11, G5

2шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2, use with Loctite

2шт.

11

R43666

SPACER

WASHER - flat, hardened, 5/8"

4шт.

12

R51124

SUSPENSION BLOCK

INSULATOR - rubber, engine mounting, two required at each location, replaces one-piece insulator (Ref. 4)

6шт.
