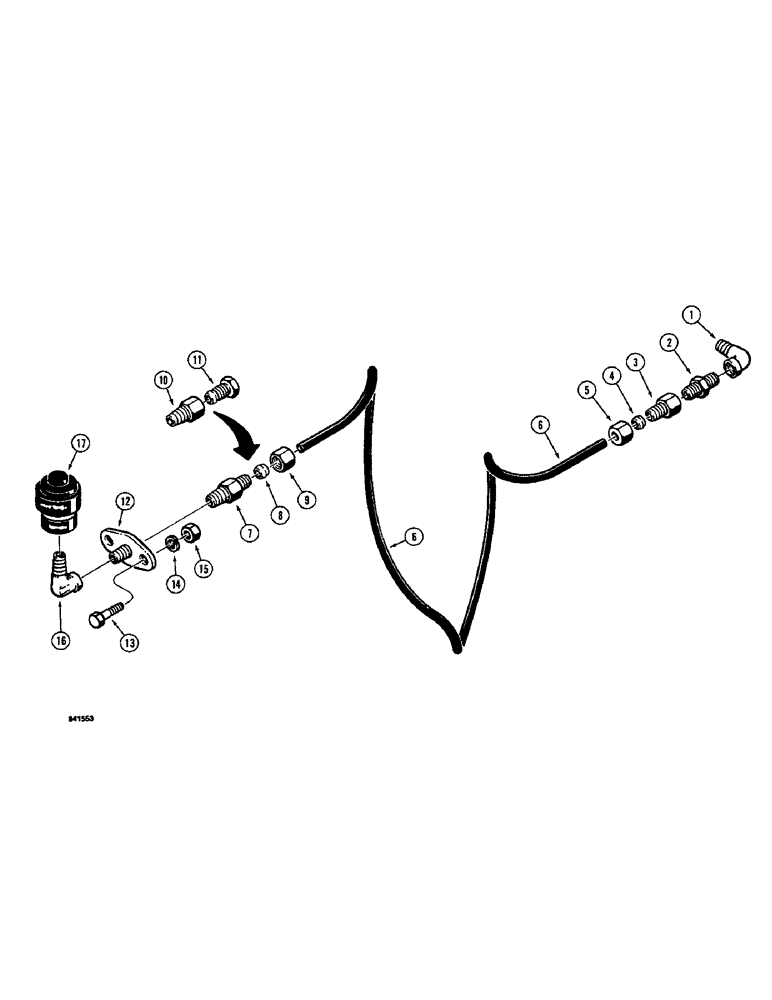

Запчасти Case 350B (020) - AIR RESTRICTION INDICATOR (01) - ENGINE

1

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

2

D36264

FITTING

ADAPTER - special, includes safety filter

1шт.

D35091

PIPE FITTING

ADAPTER - straight, female, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

4

D37176

SLEEVE

- adapter

1шт.

5

D37362

TUBE NUT

- adapter

1шт.

6

D36946

TUBE

- 28-13/16" (732 mm) long, restriction indicator, may be cut from bulk tubing, see parts substitution list for bulk tube options

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - straight, production part, for serve order 222-400, see refs. 10 and 11, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

D37176

SLEEVE

- adapter

1шт.

9

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - straight, service replacement for D35816, see refs. 7-9, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

12

H357707

FLANGE

- restriction indicator mounting

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

16

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

17

A59568

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.
