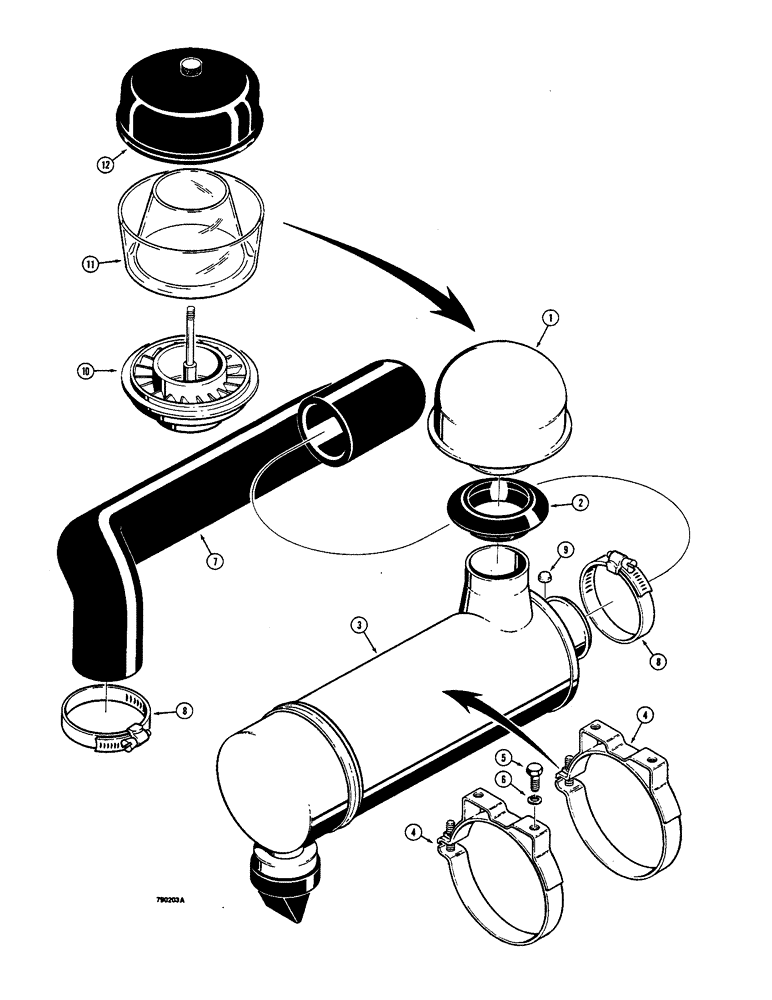

Запчасти Case 350B (016) - AIR CLEANER AND CONNECTIONS (01) - ENGINE

1

A61276

AIR CLEANER

CAP - air cleaner, if used

1шт.

2

D75362

RING

GROMMET - air cleaner cap or precleaner

1шт.

3

R39391

AIR CLEANER

ASSEMBLY - parts list figure 18

1шт.

4

R41654

COLLAR CLAMP

CLAMP ASSEMBLY - air cleaner, includes hardware

2шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

R41428

HOSE

- air cleaner

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - adjustable, air cleaner hose

2шт.

9

221-522

CAP,1/8" NPT

- pipe, 1/8" NPT

1шт.

A64589

PRECLEANER

ASSEMBLY - air cleaner, if used, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

11

73186

HOUSING

BOWL - precleaner

1шт.

12

73187

COVER

- precleaner

1шт.
