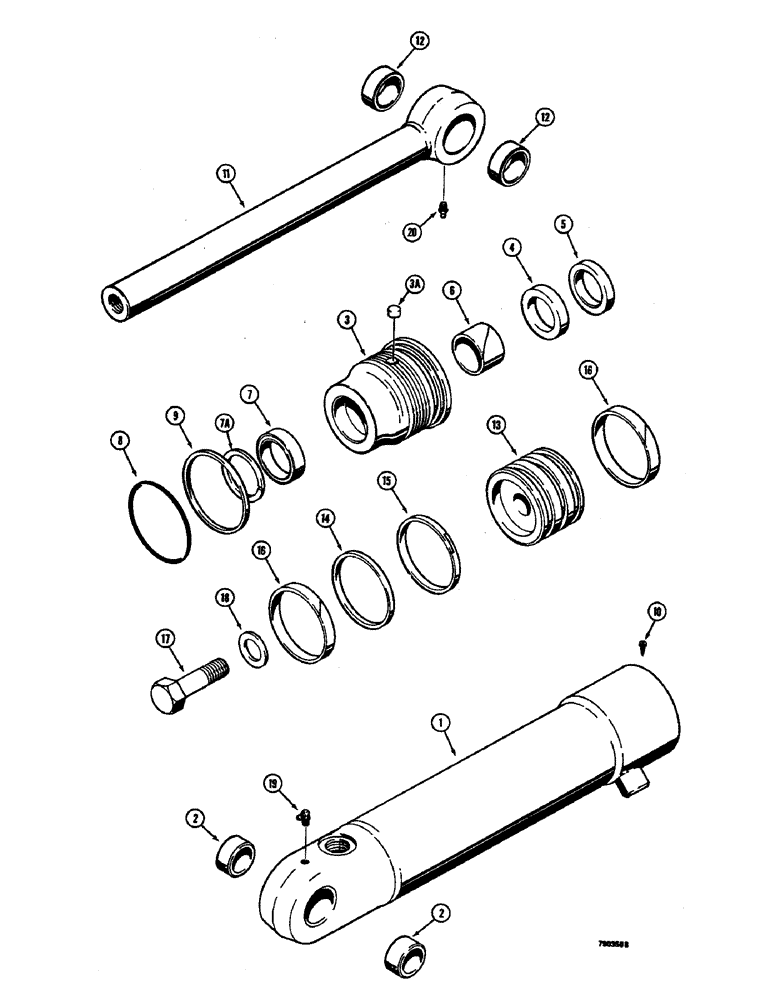

Запчасти Case 350B (234) - G101190 AND G101191 BUCKET CLAM CYLINDERS (07) - HYDRAULIC SYSTEM

G101190

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket clam, right-hand, 3" (76 mm) ID x 9" (229 mm) stroke, Includes: Ref. 1 - 20

1шт.

87454017R

REMAN-HYD CYLINDER

Bucket clam, right-hand, 3" (76 mm) ID x 9" (229 mm) stroke, Includes: Ref. 1 - 20

1шт.

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

G101191

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket clam, left-hand, 3" (76 mm) ID x 9" (229 mm) stroke, Includes: Ref. 1 - 20

1шт.

1

G32305

HYD TUBE,435.1 mm L

TUBE - G101190 right-hand cylinder

1шт.

1

G32304

HYD TUBE

TUBE - G101191 left-hand cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- both tubes

2шт.

G104240

GLAND

ASSEMBLY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

G34600

RING

RETAINING RING - gland

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G109460

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit P/N G109460

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G109460

1шт.

7

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option, severe heat or cold, if used

1шт.

7a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 7 in some glands

1шт.

Part of Seal Kit P/N G109460

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109460

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G109460

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

11

G33800

PISTON ROD

ROD - piston, 1-3/4" (44 mm) diameter

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod

2шт.

13

G100704

PISTON

- cylinder

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G109460

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G109460

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G109460

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(superfine thread) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G109460

GASKET KIT

KIT - seal, Includes: Ref. 5-7 (G107922), 7A-9 and 14-16

1шт.
