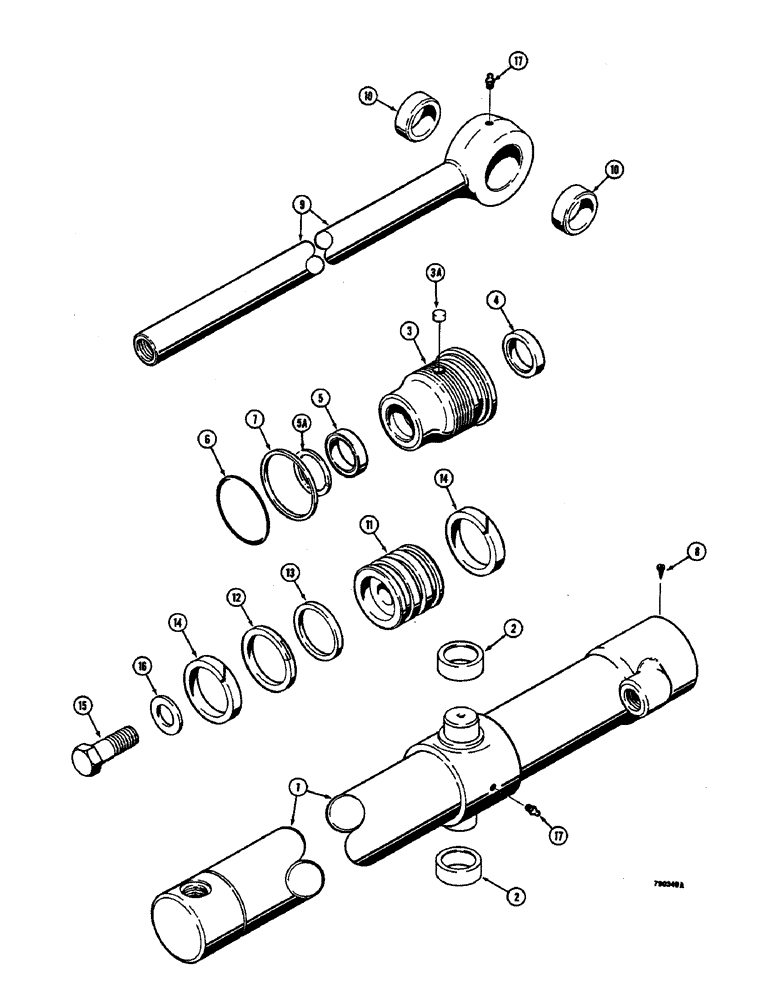

Запчасти Case 350B (232) - G101248 AND G101249 LOADER BUCKET TILT CYLINDERS (07) - HYDRAULIC SYSTEM

G101249

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket tilt, left-hand, 2-1/2" (64 mm) ID x 26" (660 mm) stroke, Includes: Ref. 1 - 17

1шт.

G101248

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, right-hand, 2-1/2" (64 mm) ID x 26" (660 mm) stroke, Includes: Ref. 1 - 17

1шт.

1

D49292

TUBE - G101249 left-hand cylinder, Includes: Ref. 2

1шт.

1

D49293

BODY

TUBE - G101248 right-hand cylinder, Includes: Ref. 2

1шт.

2

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- both tubes

2шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G109456

1шт.

5

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G109456

1шт.

5

G100776

SEAL

U-CUP SEAL - pisotn rod, service option, severe heat or cold, if used

1шт.

5a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 5 in some glands

1шт.

Part of Seal Kit P/N G109456

1шт.

6

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109456

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G109456

1шт.

8

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

9

G33433

ROD

- piston, 1-1/2" (38 mm) diameter, Includes: Ref. 10

1шт.

10

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod

2шт.

11

G100706

PISTON

- cylinder

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G109456

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109456

1шт.

14

G100714

RING

- wear

2шт.

Part of Seal Kit P/N G109456

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G109456

GASKET KIT

KIT - seal, Includes: Ref. 4, 5, (G107921), 5A, 6, 7 and 12-14

1шт.
