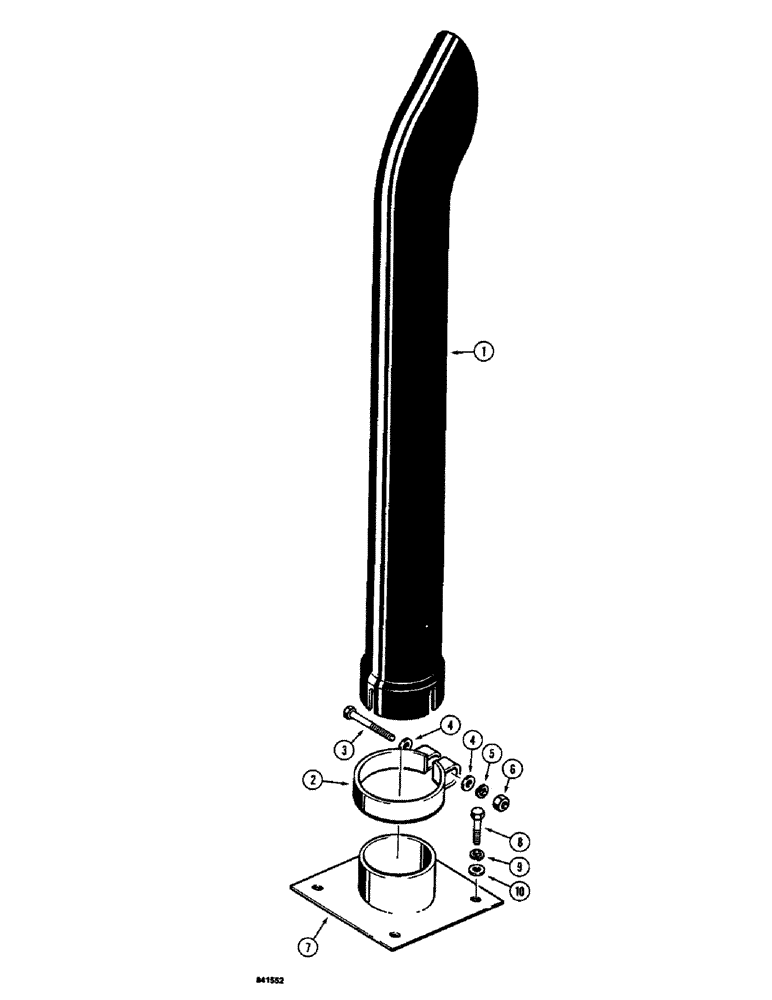

Запчасти Case 350B (014) - EXHAUST PIPE (01) - ENGINE

1

R41637

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler

1шт.

2

R42854

CLAMP

- exhaust pipe

1шт.

3

113-2271

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

195-129

WASHER,3/8"

- flat, , plated 3/8"

2шт.

5

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, black plated

1шт.

7

R42378

BRACKET

- exhaust pipe

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8", hardened

4шт.
