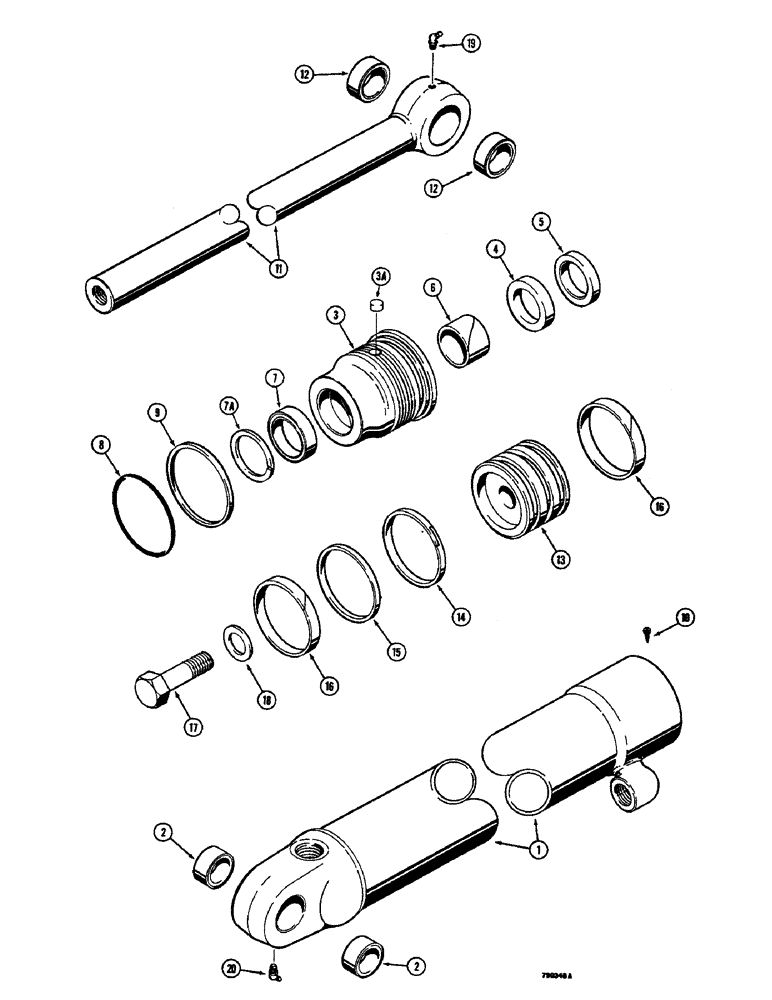

Запчасти Case 350B (230) - G101242 AND G101243 LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

G101243

CYLINDER

ASSEMBLY - loader lift, left-hand, 3" (76 mm) ID x 31" (787 mm) stroke, Includes: Ref. 1 - 20

1шт.

G101242

CYLINDER

ASSEMBLY - loader lift, right-hand, 3" (76 mm) ID x 31" (787 mm) stroke, Includes: Ref. 1 - 20

1шт.

1

D33273

TUBE

- G101243 left-hand cylinder, Includes: Ref. 2

1шт.

1

D33272

TUBE

- G101242 right-hand cylinder, Includes: Ref. 2

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- both tubes

2шт.

G104240

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

7

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option, severe heat or cold, if used

1шт.

7a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 7 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

11

G33796

ROD

- piston, 1-3/4" (44 mm) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod

2шт.

13

G100704

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(superfine thread) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G109460

GASKET KIT

KIT - seal, includes refs. 5, 6, 7, 7A, 8, 9, 14, 15 and 16

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
