Запчасти Case 350B (224) - N6592 FOUR POSITION SPOOL (07) - HYDRAULIC SYSTEM

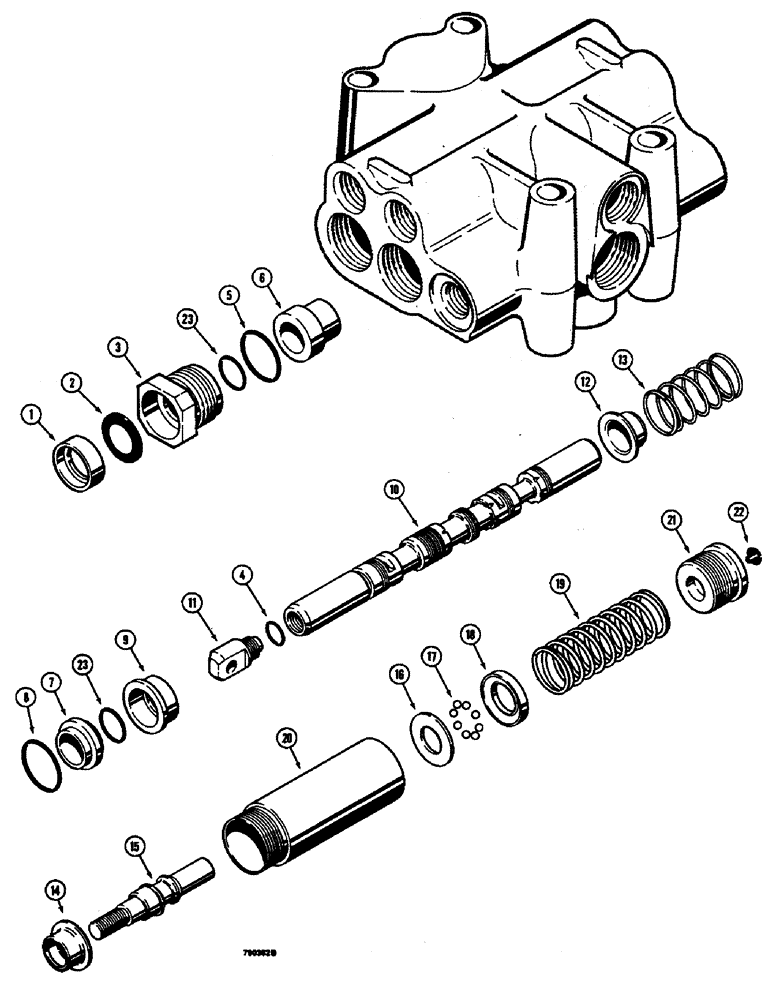

Схема запчастей Case 350B - (224) - N6592 FOUR POSITION SPOOL (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

N6592

VALVE

SPOOL ASSEMBLY - four position, lift, Includes: Ref. 1 - 23

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

- spool

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- large

1шт.

6

D37076

SLEEVE

- spool, eye end

1шт.

7

D33857

RETAINER

- O-ring

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool

1шт.

9

D33856

RETAINER

- O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - four position

1шт.

11

NSS

NOT SOLD SEPARAT

EYE - spool

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - spring, spool end

1шт.

13

N6013

SPRING

- spool

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - spring, stud end

1шт.

15

N6014

STUD

- detent

1шт.

16

L30455

WASHER

- detent

1шт.

17

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

18

N6015

CAM

- detent

1шт.

19

L30626

SPRING

- detent

1шт.

20

L30454

CAP

- valve, detent

1шт.

21

N6643

PLUG

ASSEMBLY - detent adjustment

1шт.

22

N6644

PLUG

CHECK VALVE - plug assembly

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool seal, valve housing

2шт.

Выбрано товаров: 24
