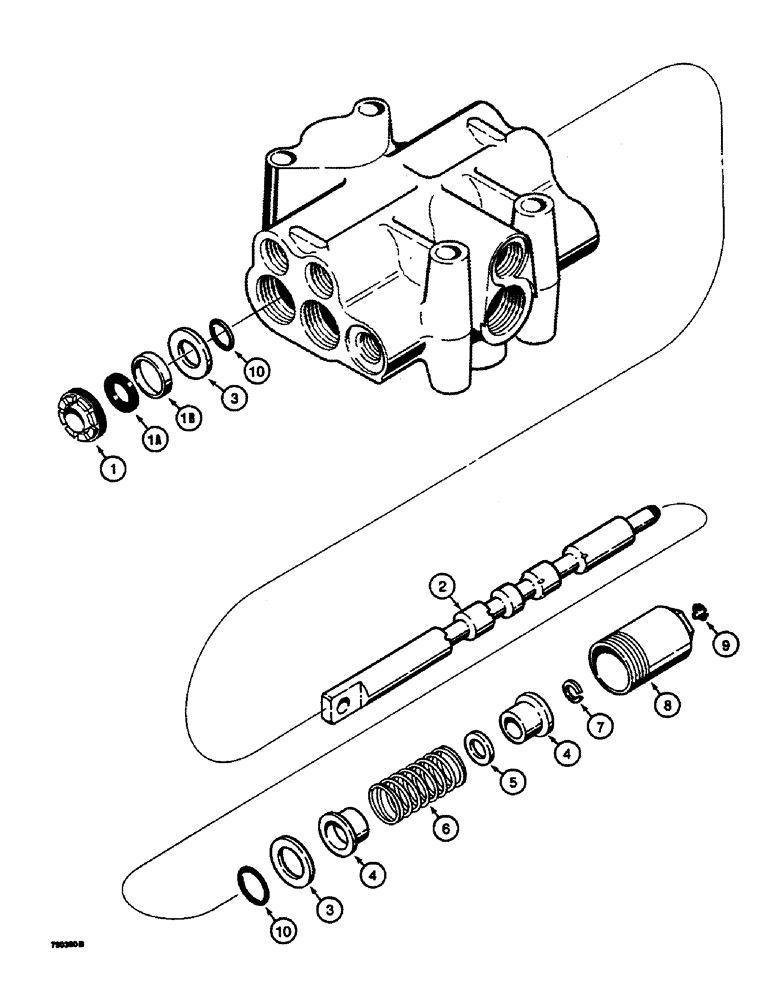

Запчасти Case 350B (220) - D37050 THREE POSITION SPOOL, WITHOUT MAGNETIC DETENT (07) - HYDRAULIC SYSTEM

N7982

SPOOL

ASSEMBLY - three position, Includes: Ref. 1 - 10

1шт.

D80412

GLAND

AND WIPER - spool, Includes: Ref. 1, 1A and 1B

1шт.

1

NSS

NOT SOLD SEPARAT

GLAND - spool

1шт.

1a

A14527

SCRAPER

WIPER - spool

1шт.

1b

NSS

NOT SOLD SEPARAT

SLEEVE - gland and wiper

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - equipment control valve

1шт.

3

A14535

RETAINER

- seal

2шт.

4

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

5

A25286

WASHER

- special

1шт.

6

A14534

SPRING

- spool return

1шт.

7

A27020

RING

SNAP RING - spring retainer

1шт.

8

N7983

CAP

- spool

1шт.

9

N6644

PLUG

CHECK VALVE - cap, if used

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool seal, valve housing

2шт.
