Запчасти Case 350B (218) - DUAL STAGE MAIN RELIEF VALVE, USED ON DOZER MODELS WITH A BACKHOE (07) - HYDRAULIC SYSTEM

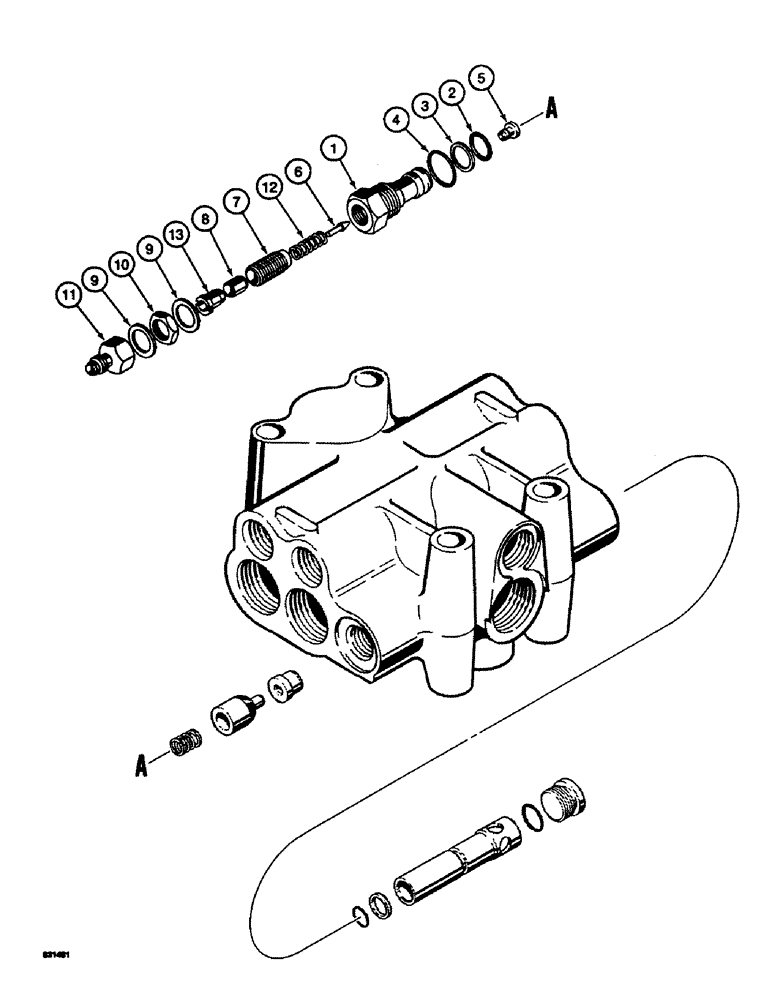

Схема запчастей Case 350B - (218) - DUAL STAGE MAIN RELIEF VALVE, USED ON DOZER MODELS WITH A BACKHOE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

D38570

VALVE

RELIEF VALVE ASSEMBLY - dual stage, dozer backhoe models, Includes: Ref. 1 - 13

1шт.

1

D37045

CAP

BODY - dual relief valve

1шт.

2

L30444

O-RING,0.521" ID x 0.661" OD

- body, small

1шт.

3

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - small O-ring

1шт.

5

D26266

SEAT

- plunger

1шт.

6

D26267

PLUNGER

- pilot

1шт.

7

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- special, adjusting

1шт.

8

D27261

PISTON

- dual relief valve

1шт.

9

D27259

SEAL

- special, body

2шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - hex, 5/8" - 18 NF, plated

1шт.

11

D27260

FITTING

ADAPTER - special

1шт.

12

D26268

SPRING

- plunger

1шт.

13

D41764

RETAINER - piston

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, body, large

1шт.

Выбрано товаров: 14
