Запчасти Case 350B (212) - TWO AND THREE SPOOL CONTROL VALVES, DRAWBAR AND DOZER MODELS (07) - HYDRAULIC SYSTEM

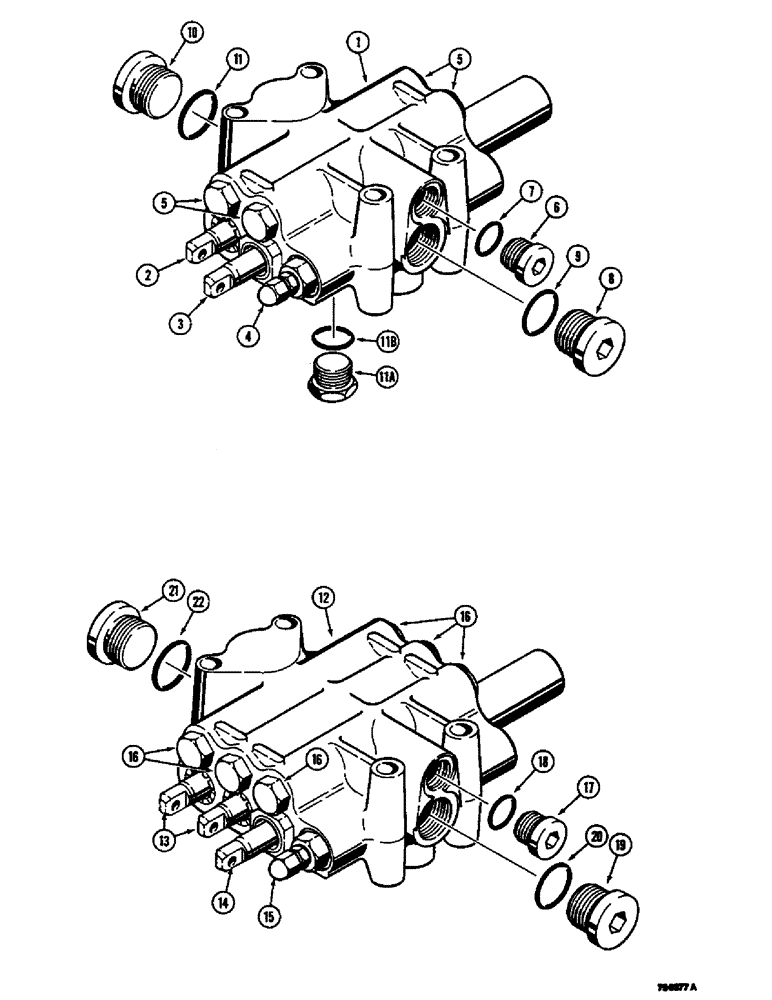

Схема запчастей Case 350B - (212) - TWO AND THREE SPOOL CONTROL VALVES, DRAWBAR AND DOZER MODELS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

R43301

VALVE

CONTROL VALVE ASSEMBLY - drawbar, Parker no. VDP22FD71, two spool models only, Includes: Ref. 2 - 11B

1шт.

2

N7982

SPOOL

- three position, parts list figure 220, two spool control valve drawbar models only

1шт.

3

N6592

VALVE

SPOOL - four position, parts list figure 224, two spool control valve drawbar models only

1шт.

4

W16129

VALVE PRESSURE RELIE

VALVE - main relief, parts list figure 216, two spool control valve drawbar models only

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - load check, parts list figure 228, two spool control valve drawbar models only

4шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Two spool control valve drawbar models only, Incl Ref 7 Hex Soc, 3/4"-16 ORB

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

2 spool control valve drawbar models only, Incl. Ref. 9 Hex Soc, 1 1/16"-12 ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, two spool control valve drawbar models only

1шт.

10

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

two spool control valve drawbar models only, Incl. Ref 11 Hex Soc, 1 5/16"-12 ORB

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, two spool control valve drawbar models only

1шт.

11a

86512512

PLUG,7/8" - 14 ORB

Used on drawbar models when no hydraulic circuit is required, if used, two spool control valve drawbar models only, Incl. Ref. 11B Hex Hd, 7/8"-14 ORB

4шт.

11b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, two spool control valve drawbar models only

1шт.

12

R43300

VALVE

CONTROL VALVE ASSEMBLY - dozer, Parker no. VDP22FDD79, three spool models, Includes: Ref. 13 - 22

1шт.

13

N7982

SPOOL

- three position, parts list figure 220, three spool control valve dozer models

2шт.

14

N6592

VALVE

SPOOL - four position, parts list figure 224, three spool control valve dozer models

1шт.

15

W16129

VALVE PRESSURE RELIE

VALVE - main relief, parts list figure 216, three spool control valve dozer models

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - check, parts list figure 228, three spool control valve dozer models

6шт.

17

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Three spool control valve dozer models, Incl Ref 18 Hex Soc, 3/4"-16 ORB

1шт.

19

9841223

PLUG,1-1/16" - 12 ORB

3 spool control valve dozer models, Incl. Ref. 20 Hex Soc, 1 1/16"-12 ORB

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, three spool control valve dozer models

1шт.

21

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

three spool control valve dozer models, Incl. Ref 22 Hex Soc, 1 5/16"-12 ORB

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, three spool control valve dozer models

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug, two spool control valve drawbar models only

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug, three spool control valve dozer models

1шт.

Выбрано товаров: 24
