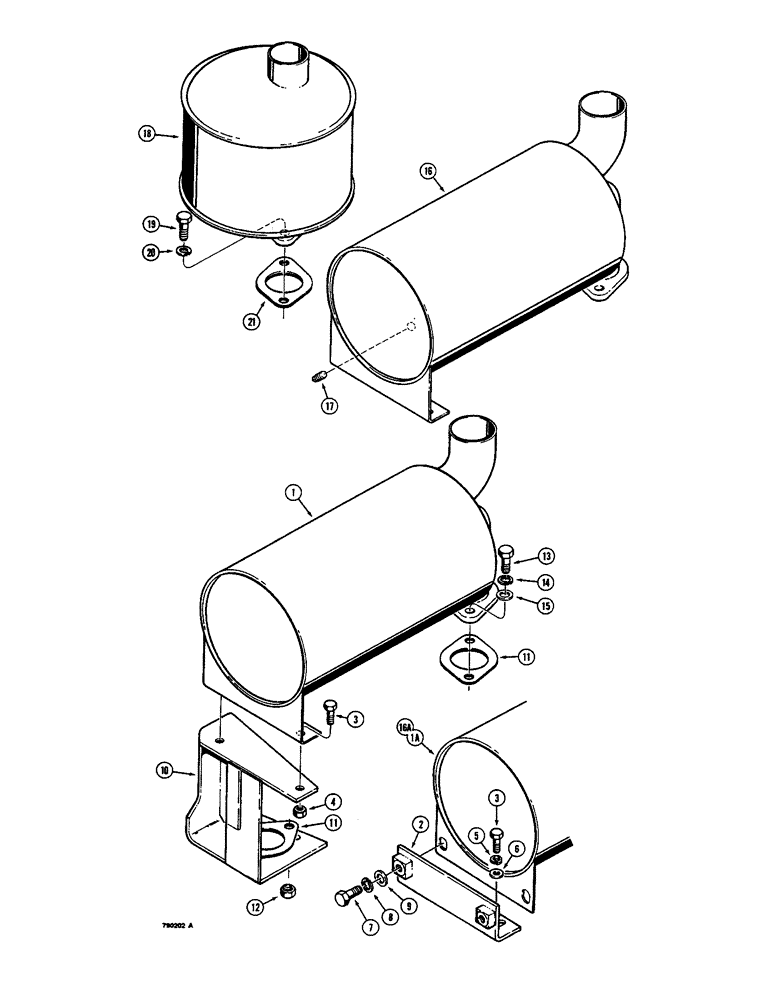

Запчасти Case 350B (012) - MUFFLERS (01) - ENGINE

1

R25522

MUFFLER

- horizontal style, with bent mounting plate, no longer used, replace with R43819 muffler (Ref. A) and R47926 bracket (Ref. 2)

1шт.

1a

R43819

MUFFLER

- horizontal style, with flat mounting plate, used with ref. 2 bracket

1шт.

2

R47926

ANGLE

BRACKET - muffler mounting, horizontal style

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Horizontal style Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, used on mufflers without 2 bracket only, horizontal style

2шт.

5

92-5

LOCK WASHER,5/16"

used with Ref 2 bracket only, horizontal style 5/16"

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used with ref. 2 bracket only, horizontal style

2шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with Ref. 2 bracket, horizontal style Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

used with item 2 bracket, horizontal style 3/8"

2шт.

9

95-6

WASHER,3/8"

- flat, , used with ref. 2 bracket, horizontal style 3/8"

2шт.

10

R47924

SUPPORT

- muffler mounting, used with all styles of mufflers, horizontal style

1шт.

11

G46853

MANIFOLD GASKET

- exhaust manifold, horizontal style

2шт.

12

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, horizontal style

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Horizontal style Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

horizontal style 3/8"

2шт.

15

195-25

WASHER,3/8"

- flat, , horizontal style 3/8"

2шт.

16

R40830

BRACKET

MUFFLER - spark arrester, with bent mounting plate, no longer used, replace with R43820 muffler (Ref. 16A) and R47926 bracket (Ref. 2), horizontal style

1шт.

16a

R43820

MUFFLER

- spark arrester, with flat mounting plate, used with Ref. 2 bracket, horizontal style, Includes: Ref. 17

1шт.

17

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - spark arrester mufflers, 1/4" NPT, brass, if used, horizontal style

1шт.

18

R40822

MUFFLER

- vertical style, if used

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Vertical style Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

vertical style 3/8"

2шт.

21

G46853

MANIFOLD GASKET

- exhaust manifold to muffler, vertical style

1шт.
